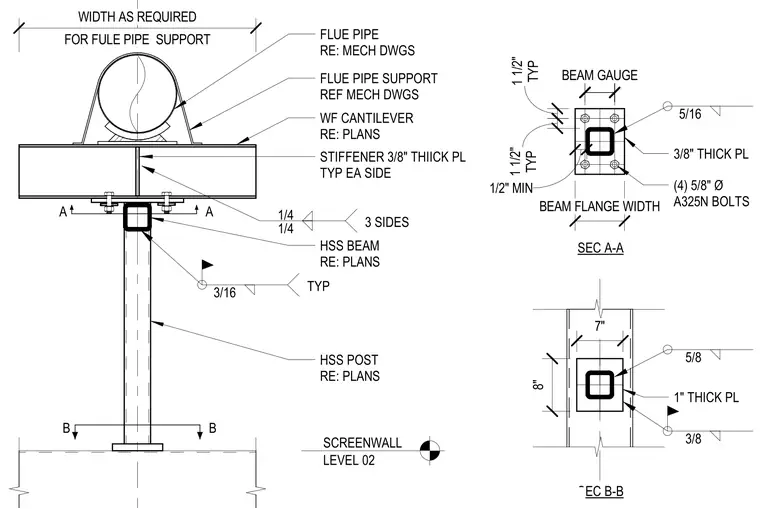

This assembly consists of a hollow structural section post supporting a wide-flange cantilever beam, which in turn carries a flue pipe support bracket. The HSS post is connected to the beam via a one-inch thick base plate, welded with 3/8-inch and 5/8-inch fillet welds. The wide-flange beam features 3/8-inch thick stiffener plates on each side, welded with 1/4-inch fillet welds on three sides. The connection between the HSS post and the beam flange is secured using four 5/8-inch diameter A325N bolts, with a minimum 1/2-inch clearance from the beam edge. The flue pipe support is mounted atop the wide-flange beam, with dimensions and pipe sizing determined by mechanical drawings.
Text on the drawing
SCREENWALL LEVEL 02 HSS POST RE: PLANS STIFFENER 3/8" THIICK PL TYP EA SIDE FOR FULE PIPE SUPPORT WIDTH AS REQUIRED FLUE PIPE RE: MECH DWGS FLUE PIPE SUPPORT REF MECH DWGS WF CANTILEVER RE: PLANS B B 5/16 BEAM GAUGE TYP 1 1/2" SEC A-A 3/8" THICK PL (4) 5/8" Ø A325N BOLTS A A BEAM GAUGE BEAM GAUGE BEAM FLANGE WIDTH TYP 1 1/2" 1/4 1/4 3 SIDES 1/2" MIN 5/8 SEC B-B 1" THICK PL 8" 7" 3/8 HSS BEAM RE: PLANS 3/16 TYP
