Tilt-Up Concrete Wall Jamb and Lintel Reinforcement Details

Materials

Concrete Reinforced Concrete

Elements

Beams Walls Foundations / Footings Arches Reinforcing Roof / Floor Openings

Connections

Rebar Splice / Development

About this detail

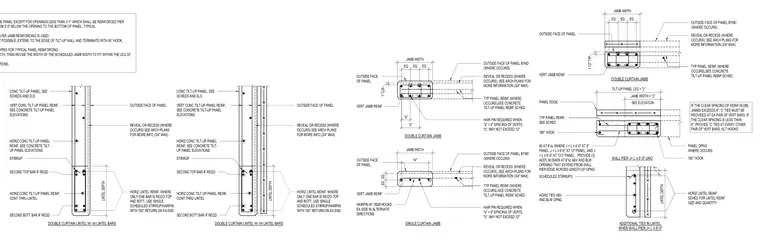

Concrete tilt-up wall jambs and lintels require specific reinforcing layouts with vertical and horizontal bars distributed across single or double curtain configurations. Vertical jamb reinforcing extends from the bottom of the panel to the top, with half placed on each face for double curtain layers, and ties spaced at 8 inches on center above and below openings. Lintel reinforcing extends forty bar diameters minimum past the opening edge and terminates with 90-degree hooks where necessary. Single scheduled stirrups or hairpins with 180-degree returns are used at top and bottom horizontal lintels when only one bar is required. Additional hairpins and ties are installed at alternating directions and specified spacings based on wall leg widths and pier dimensions.

1. JAMB REINFORCING, INCLUDING TIES, SHALL EXTEND FROM THE BOTTOM OF THE PANEL TO THE TOP OF THE PANEL EXCEPT FOR OPENINGS LESS THAN 3'-1" WHICH SHALL BE REINFORCED PIER DETAIL . SPACE TIES AT 8"oc. FROM 2'-0" ABOVE THE OPENING TO THE TOP OF THE PANEL, AND FROM 2'-0" BELOW THE OPENING TO THE BOTTOM OF PANEL, TYPICAL. 3. HALF OF THE VERTICAL JAMB REINFORCING IS TO BE PLACED ON EA FACE OF THE PANEL WHEN DOUBLE LAYER JAMB REINFORCING IS USED. 4. 3.EXTEND LINTEL REINFORCING BEYOND EDGE OF THE OPENING 40 BAR DIAMETERS MINIMUM. WHERE NOT POSSIBLE, EXTEND TO THE EDGE OF TILT-UP WALL AND TERMINATE WITH 90° HOOK. 6. REINFORCE JAMBS AND LINTELS PER PLACEMENT DIAGRAMS, SEE CONCRETE TILT-UP PANEL ELEVATION TYPES FOR TYPICAL PANEL REINFORCING. 7. IF THE LEG OF THE CONCRETE TILT-UP PANEL IS NO MORE THAN 6" WIDER THAN THE SCHEDULED JAMB WIDTH, THEN REVISE THE WIDTH OF THE SCHEDULED JAMB WIDTH TO FIT WITHIN THE LEG OF 8. AT PANELS WITH KNOCKOUT PANELS, REINFORCE AROUND THE KNOCKOUT PANEL AS PER TYPICAL ELEVATIONS. HORIZ LINTEL REINF. WHERE ONLY ONE BAR IS REQ'D TOP AND BOTT, USE SINGLE SCHEDULED STIRRUP/HAIRPIN WITH 180° RETURN ON EA END OUTSIDE FACE OF PANEL REVEAL OR RECESS (WHERE OCCURS) SEE ARCH PLANS FOR MORE INFO (3/4" MAX) LINTEL DEPTH VERT JAMB REINF OUTSIDE FACE OF PANEL REVEAL OR RECESS (WHERE OCCURS), SEE ARCH PLANS FOR MORE INFORMATION (3/4" MAX) OUTSIDE FACE OF PANEL BYND (WHERE OCCURS) TYP PANEL REINF (WHERE OCCURS),SEE CONCRETE TILT-UP PANEL REINF SCHED DOUBLE CURTAIN JAMB EQ EQ EQ JAMB WIDTH 1" CLR DOUBLE CURTAIN LINTEL W/ ≥4 LINTEL BARS VERT CONC TILT-UP PANEL REINF, SEE CONCRETE TILT-UP PANEL ELEVATIONS HORIZ CONC TILT-UP PANEL REINF, SEE CONCRETE TILT- UP PANEL ELEVATIONS STIRRUP SECOND TOP BAR IF REQD HORIZ CONC TILT-UP PANEL REINF, CONT THRU LINTEL SECOND BOTT BAR IF REQD CONC TILT-UP PANEL, SEE SCHEDS AND ELS "a" "b" HAIR PIN REQUIRED WHEN "a" > 6" SPACING OF VERTS, "b", MAY NOT EXCEED 12" VERT JAMB REINF OUTSIDE FACE OF PANEL REVEAL OR RECESS (WHERE OCCURS), SEE ARCH PLANS FOR MORE INFORMATION (3/4" MAX) OUTSIDE FACE OF PANEL BYND (WHERE OCCURS) TYP PANEL REINF (WHERE OCCURS),SEE CONCRETE TILT-UP PANEL REINF SCHED SINGLE CURTAIN JAMB 14" JAMB WIDTH HAIR PIN REQUIRED WHEN "a" > 6" SPACING OF VERTS, "b", MAY NOT EXCEED 12" HAIRPIN W/ 180Ø HOOKS EA SIDE IN ALTERNATE DIRECTIONS EQ EQ HORIZ LINTEL REINF. WHERE ONLY ONE BAR IS REQ'D TOP AND BOTT, USE SINGLE SCHEDULED STIRRUP/HAIRPIN WITH 180° RETURN ON EA END OUTSIDE FACE OF PANEL REVEAL OR RECESS (WHERE OCCURS) SEE ARCH PLANS FOR MORE INFO (3/4" MAX) LINTEL DEPTH DOUBLE CURTAIN LINTEL W/ ≥4 LINTEL BARS VERT CONC TILT-UP PANEL REINF, SEE CONCRETE TILT-UP PANEL ELEVATIONS HORIZ CONC TILT-UP PANEL REINF, SEE CONCRETE TILT- UP PANEL ELEVATIONS STIRRUP SECOND TOP BAR IF REQD HORIZ CONC TILT-UP PANEL REINF, CONT THRU LINTEL SECOND BOTT BAR IF REQD CONC TILT-UP PANEL, SEE SCHEDS AND ELS HORIZ TIES ABV AND BLW OPNG SCHEDULED STIRRUPS LINTEL DEPTH HORIZ LINTEL REINF, SCHED FOR LINTEL REINF SIZE AND QUANTITY 2" ADDITIONAL TIES IN LINTEL WHEN WALL PIER J< L ≤6'-0" PANEL OPNG WHERE OCCURS 180° HOOK WALL PIER J< L ≤6'-0" UNO TILT-UP PANEL LEG = "L" SEE ELEVATION JAMB WIDTH = "J" #3 AT 6"oc WHERE J < L ≤4'-0" AT 8" PANEL, J < L ≤6'-0" AT 12" PANEL, AND J < L ≤6'-9" AT 13.5" PANEL . PROVIDE (3) ADD'L #3 BARS AT 6"oc ABV AND BLW OPENING THAT EXTEND FROM WALL PIER EDGE ACROSS LENGTH OF OPNG IF THE CLEAR SPACING OF REINF IN DBL JAMBS EXCEEDS 6", 'C' TIES MUST BE PROVIDED AT EA PAIR OF VERT BARS. IF THE CLEAR SPACING IS LESS THAN 6", PROVIDE 'C' TIES AT EVERY OTHER PAIR OF VERT BARS, ALT HOOKS PANEL EDGE TYP PANEL REINF, SEE SCHED 180° HOOK DOUBLE CURTAIN JAMB VERT JAMB REINF OUTSIDE FACE OF PANEL JAMB WIDTH 1 1/2" TYP TYP PANEL REINF (WHERE OCCURS),SEE CONCRETE TILT-UP PANEL REINF SCHED REVEAL OR RECESS (WHERE OCCURS), SEE ARCH PLANS FOR MORE INFORMATION (3/4" MAX) OUTSIDE FACE OF PANEL BYND (WHERE OCCURS) EQ EQ EQ
