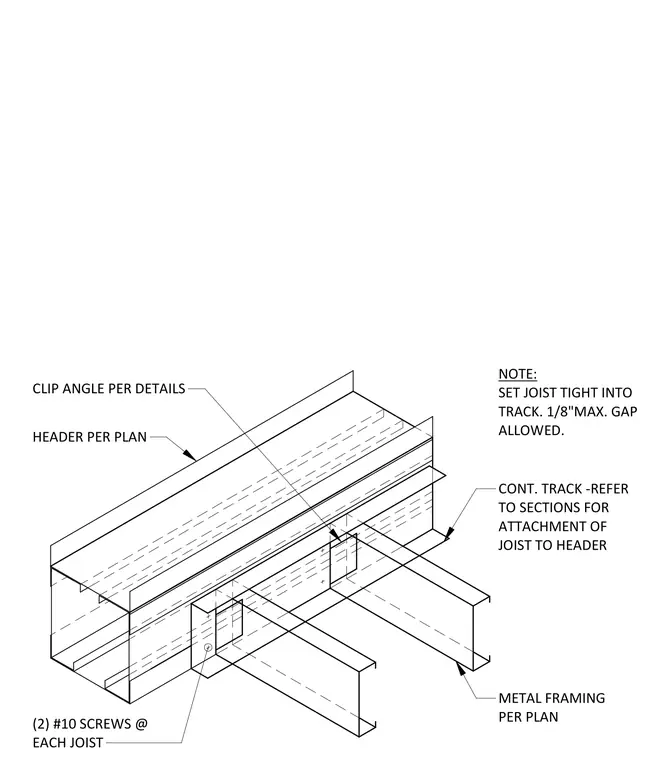

The cold-formed steel joist seats into a continuous track attached to a header member sized per plan. A clip angle, as specified in other details, secures the joist to the track. Two number 10 screws are installed at each joist connection to the header. The joist must be set tight into the track with a maximum allowable gap of one-eighth inch.
Text on the drawing
CONT. TRACK -REFER TO SECTIONS FOR ATTACHMENT OF JOIST TO HEADER HEADER PER PLAN (2) #10 SCREWS @ EACH JOIST METAL FRAMING PER PLAN NOTE: SET JOIST TIGHT INTO TRACK. 1/8"MAX. GAP ALLOWED. CLIP ANGLE PER DETAILS
