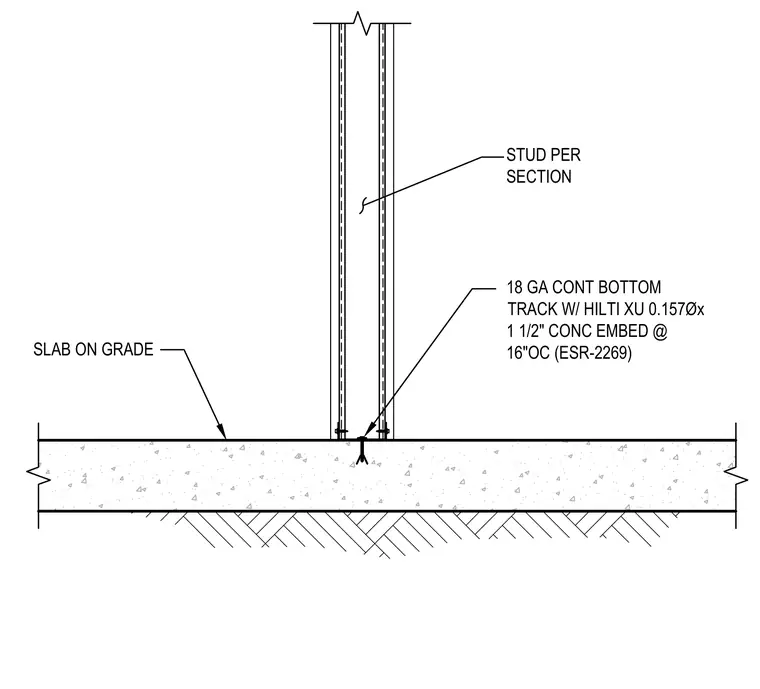

An eighteen gauge continuous bottom track fastens directly to a concrete slab-on-grade using Hilti XU zero point one five seven inch diameter by one and one-half inch concrete embedment fasteners spaced at sixteen inches on center per ESR-twenty-two sixty-nine. Framing studs are sized per section and set within the continuous bottom track.
18 GA CONT BOTTOM TRACK W/ HILTI XU 0.157Øx 1 1/2" CONC EMBED @ 16"OC (ESR-2269) STUD PER SECTION SLAB ON GRADE
