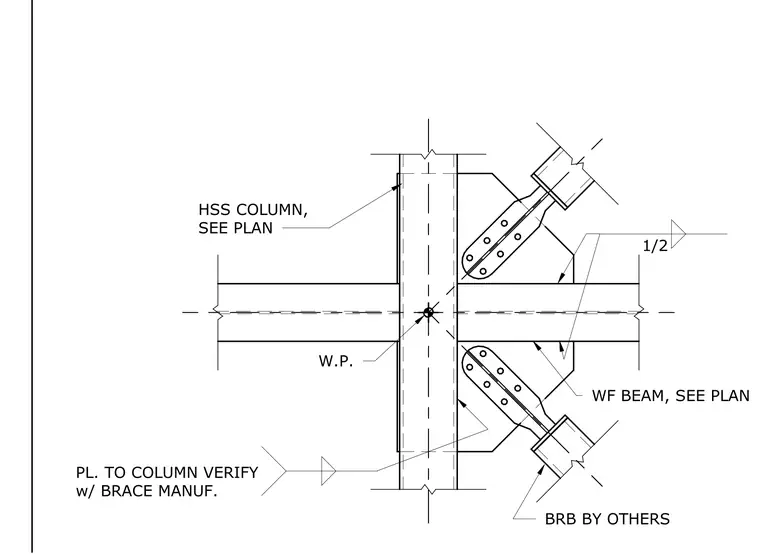

A gusset plate welds to a hollow structural section column and a wide flange beam at the work point. The buckling restrained brace, provided by others, connects to the gusset plate via a bolted connection. Verify the gusset plate to column weld with the brace manufacturer. Determine wide flange beam and hollow structural section column sizes per the structural plans.
Text on the drawing
PL. TO COLUMN VERIFY w/ BRACE MANUF. W.P. BRB BY OTHERS HSS COLUMN, SEE PLAN WF BEAM, SEE PLAN 1/2 20 SCALE: 1/2" = 1'-0" CENTERAL BRACE FRAME If the beam is rotated flat, this weld doesn't work
