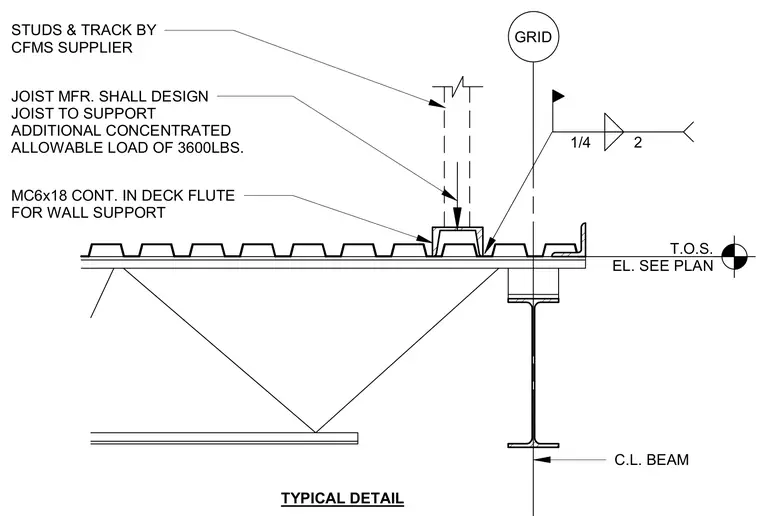

A continuous MC6x18 steel channel is placed within the metal deck flute to provide wall support aligned with the grid centerline and steel beam below. Cold-formed metal studs and track supplied by the cold-formed metal framing supplier bear on the assembly. The roof joist manufacturer must design the joist to support an additional concentrated allowable load of 3600 pounds.
1/4 2 STUDS & TRACK BY CFMS SUPPLIER JOIST MFR. SHALL DESIGN JOIST TO SUPPORT ADDITIONAL CONCENTRATED ALLOWABLE LOAD OF 3600LBS. GRID C.L. BEAM T.O.S. EL. SEE PLAN MC6x18 CONT. IN DECK FLUTE FOR WALL SUPPORT TYPICAL DETAIL
