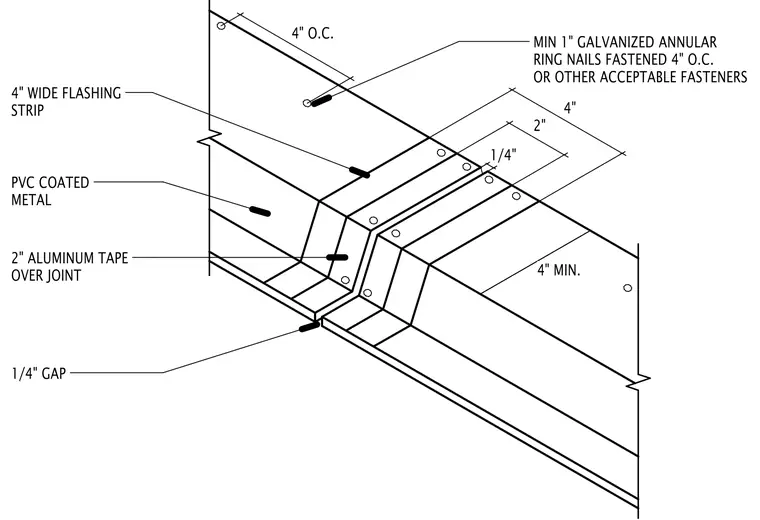

An isometric detail of a metal flashing joint maintains a 1/4" gap between adjacent panels. A 2" wide aluminum tape is applied directly over the joint for sealing. A 4" wide flashing strip of PVC-coated metal overlaps the joint and is fastened using minimum 1" galvanized annular ring nails spaced at 4" on center, or other acceptable fasteners, maintaining a minimum 4" overlap.
4" 2" 1/4" 4" O.C. 4" MIN. 4" WIDE FLASHING STRIP PVC COATED METAL 2" ALUMINUM TAPE OVER JOINT 1/4" GAP MIN 1" GALVANIZED ANNULAR RING NAILS FASTENED 4" O.C. OR OTHER ACCEPTABLE FASTENERS
