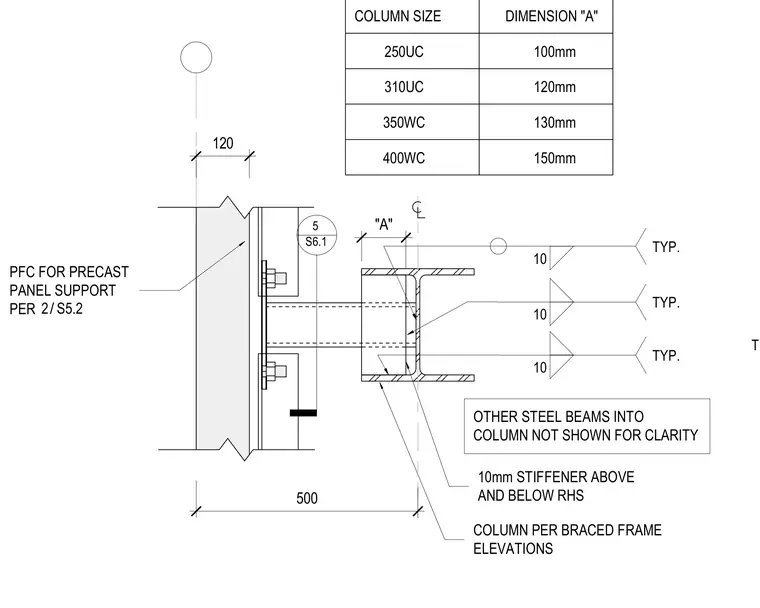

A universal column web connects to a parallel flange channel supporting a precast concrete panel with a rectangular hollow section and stiffener plates located above and below. Ten-millimeter typical fillet welds secure the steel members and stiffener plates. A sizing table defines dimension "A" according to the column size, ranging from two hundred fifty universal columns to four hundred wide flange columns. Other steel beams framing into the column are omitted for clarity.
TYP. "A" 10 TYP. 10 TYP. 500 COLUMN SIZE DIMENSION "A" 250UC 100mm 310UC 120mm 350WC 130mm 400WC 150mm 10 TYP. 10mm STIFFENER ABOVE AND BELOW RHS PFC FOR PRECAST PANEL SUPPORT PER COLUMN PER BRACED FRAME ELEVATIONS 5 S6.1 OTHER STEEL BEAMS INTO COLUMN NOT SHOWN FOR CLARITY / 2 S5.2 120
