Mechanical equipment under three hundred pounds is supported by two L5x3x1/4 angles with Unistruts suspended below the metal roof deck. L6x4x5/16 by ten-inch long angles connect back to the structural steel joists with three-sixteenths inch fillet welds. Five-and-a-half by three-inch spacer plates one-sixteenth inch thicker than the hanging rods are placed at the third points. Hanging rods provided by the mechanical contractor extend down to support the equipment. Quarter-inch fillet welds are specified at the structural connections.

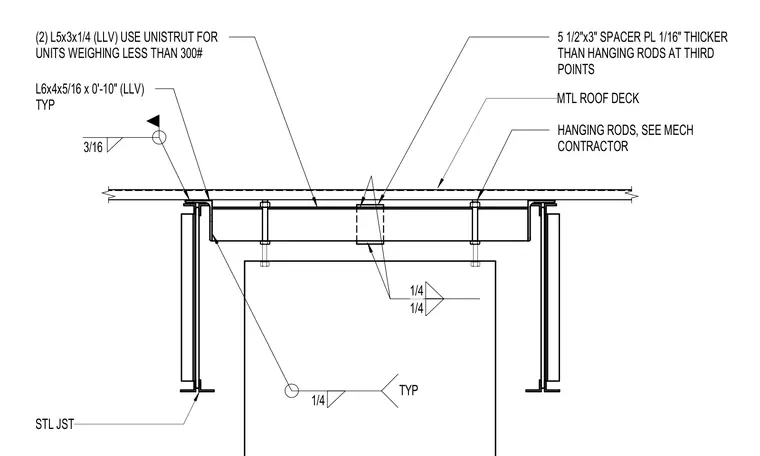

(2) L5x3x1/4 (LLV) USE UNISTRUT FOR UNITS WEIGHING LESS THAN 300# L6x4x5/16 x 0'-10" (LLV) TYP HANGING RODS, SEE MECH CONTRACTOR 5 1/2"x3" SPACER PL 1/16" THICKER THAN HANGING RODS AT THIRD POINTS TYP 1/4 1/4 1/4 3/16 STL JST MTL ROOF DECK
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
