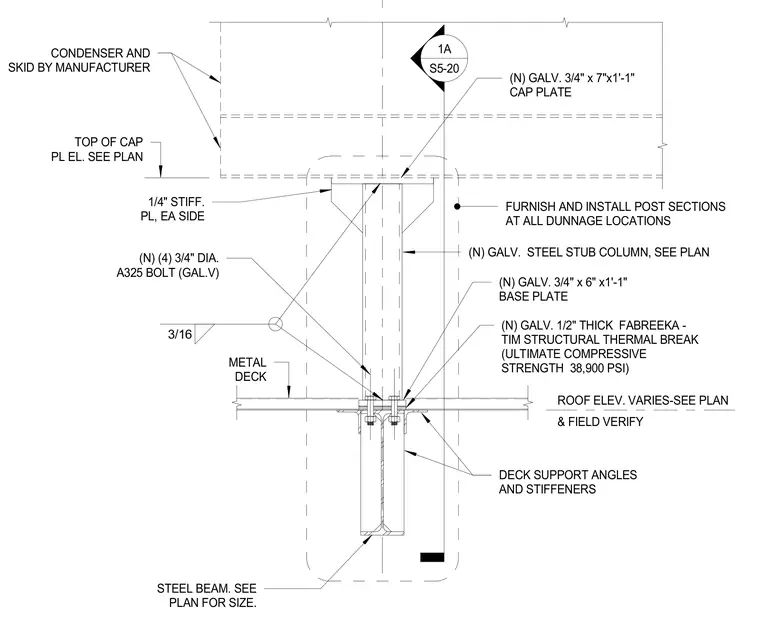

A new galvanized steel stub column is supported by a structural steel beam below a metal deck assembly, utilizing deck support angles and stiffeners as detailed on plan. A new galvanized three-quarter-inch thick Fabreeka thermal break pad sits beneath a new galvanized three-quarter-inch by six-inch by one-foot-one-inch base plate, secured by four three-quarter-inch diameter A325 galvanized bolts with a three-sixteenths-inch fillet weld. The top of the stub column features a new galvanized three-quarter-inch by seven-inch by one-foot-one-inch cap plate with quarter-inch stiffener plates on each side, welded to receive a manufacturer-supplied condenser unit and skid. Post sections are provided at all dunnage locations with field-verified roof elevations.
(N) GALV. STEEL STUB COLUMN, SEE PLAN (N) GALV. 3/4" x 7"x1'-1" CAP PLATE (N) (4) 3/4" DIA. A325 BOLT (GAL.V) TOP OF CAP PL EL. SEE PLAN ROOF ELEV. VARIES-SEE PLAN & FIELD VERIFY 3/16 (N) GALV. 1/2" THICK FABREEKA - TIM STRUCTURAL THERMAL BREAK (ULTIMATE COMPRESSIVE STRENGTH 38,900 PSI) (N) GALV. 3/4" x 6" x1'-1" BASE PLATE STEEL BEAM. SEE PLAN FOR SIZE. DECK SUPPORT ANGLES AND STIFFENERS METAL DECK CONDENSER AND SKID BY MANUFACTURER FURNISH AND INSTALL POST SECTIONS AT ALL DUNNAGE LOCATIONS 1/4" STIFF. PL, EA SIDE 1A S5-20
