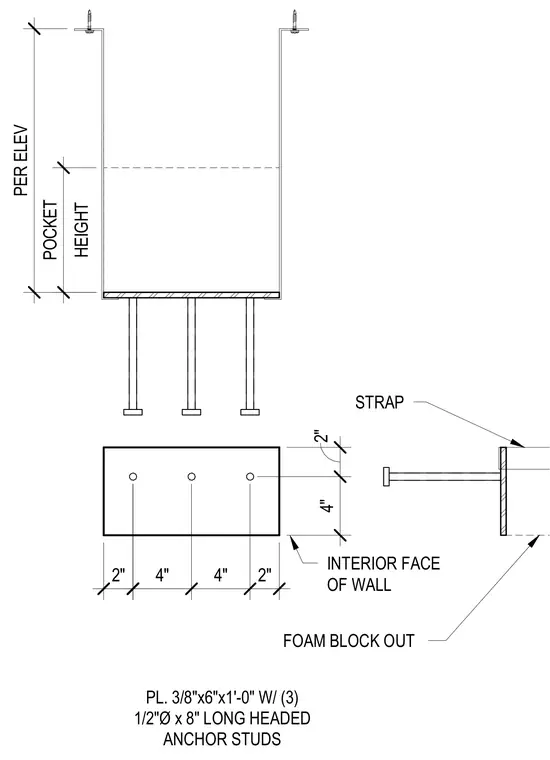

A 3/8-inch by 6-inch by 1-foot-0-inch steel plate is embedded flush with the interior face of the wall and welded with three 1/2-inch diameter by 8-inch long headed anchor studs. A formed strap connects to the assembly, with pocket height detailed per elevation. A foam block-out creates the pocket space around the strap.
2" 2" 4" 4" 4" 2" PL. 3/8"x6"x1'-0" W/ (3) 1/2"Ø x 8" LONG HEADED ANCHOR STUDS INTERIOR FACE OF WALL FOAM BLOCK OUT STRAP PER ELEV HEIGHT POCKET
