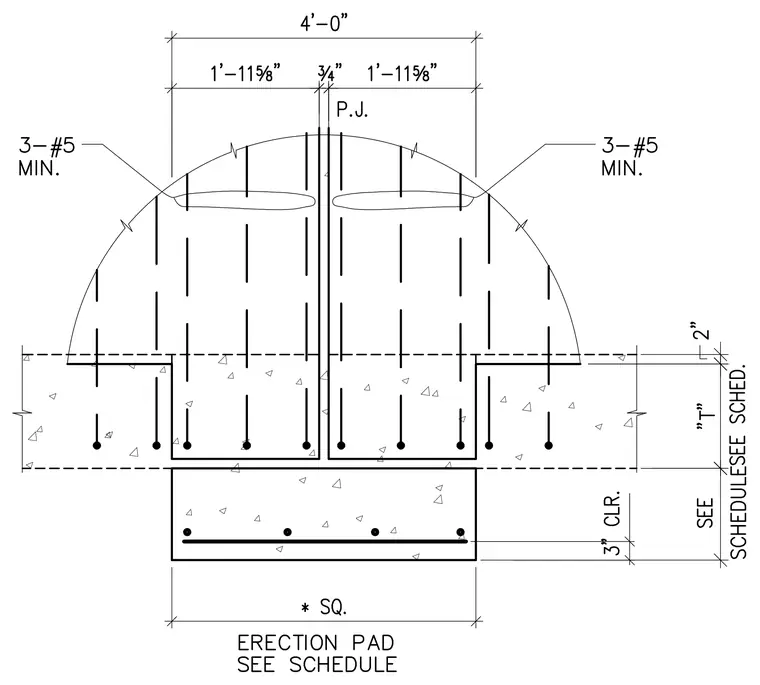

An erection pad sits below a reinforced concrete slab featuring a three-quarter inch paved joint at the centerline and a total width of four feet. Three number five minimum reinforcing bars extend into the slab sections on each side of the joint. The underlying concrete pad has a three-inch clearance to the bottom reinforcing steel, with dimensions varying per the structural schedule. Dashed lines indicate the slab thickness designated as dimension T.
