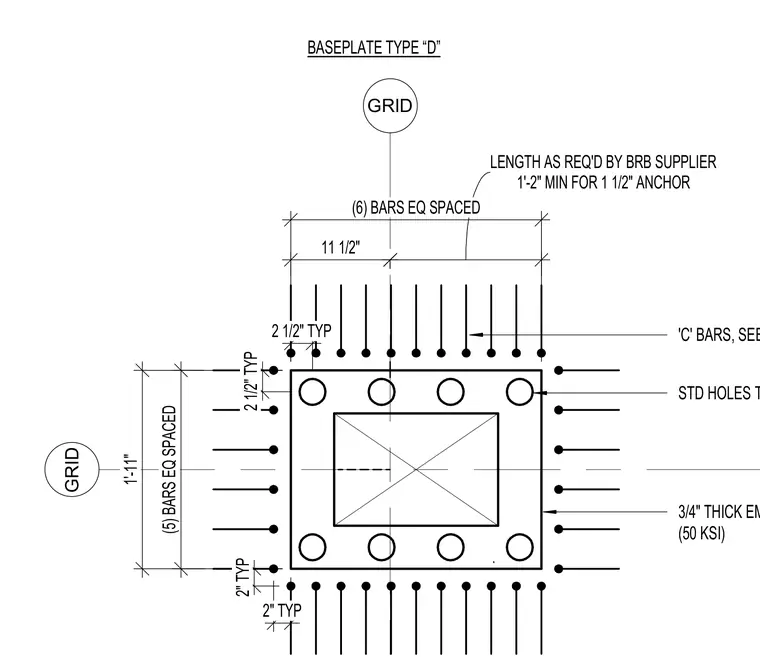

A three-quarter-inch thick embed plate with fifty KSI steel is detailed with standard holes to match anchor bolts. Surrounding reinforcing bars are equally spaced around the plate with designated edge clearances and minimum lengths required by the buckling-restrained braced frame supplier. Grid lines align the baseplate assembly within the structural plan.
STD HOLES TO MATCH AB'S 3/4" THICK EMBED PL (50 KSI) 'C' BARS, SEE SCHEDULE GRID 11 1/2" 1'-2" MIN FOR 1 1/2" ANCHOR LENGTH AS REQ'D BY BRB SUPPLIER GRID 1'-11" (5) BARS EQ SPACED (6) BARS EQ SPACED 2" TYP 2" TYP BASEPLATE TYPE “D” 2 1/2" TYP 2 1/2" TYP
