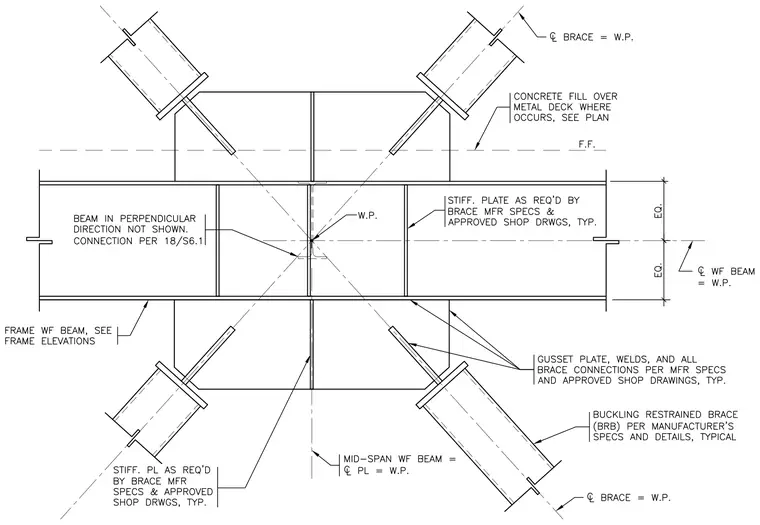

Four buckling restrained braces frame into the intersection of a wide-flange beam and a mid-span wide-flange beam, meeting at a common work point. Gusset plates, welds, and all brace connections are installed per manufacturer specifications and approved shop drawings. Stiffener plates are provided as required by the brace manufacturer and approved shop drawings. Concrete fill over metal deck is located where indicated on plan.
