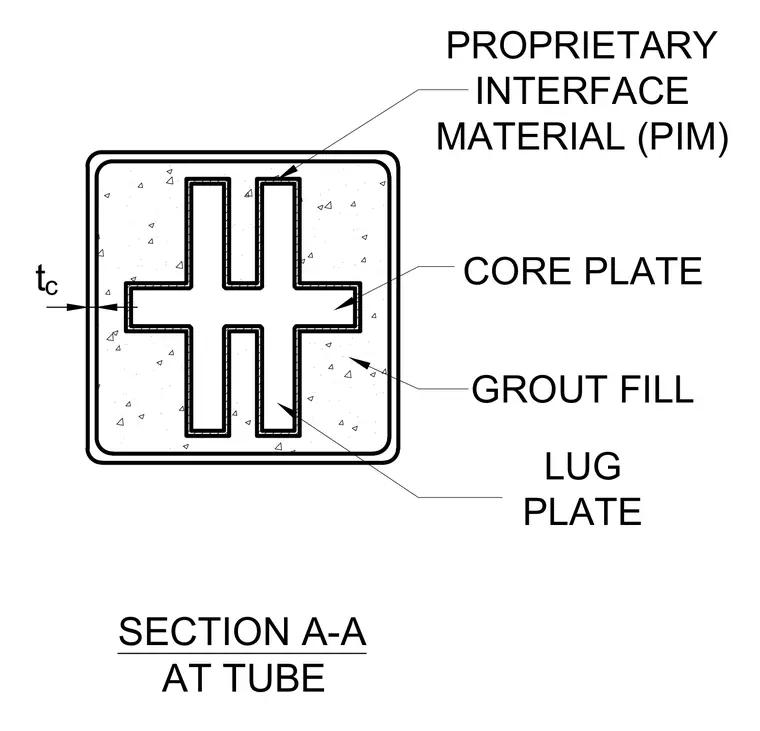

A core plate connects with surrounding lug plates inside a hollow structural section tube. Proprietary interface material lines the internal plates with a specified thickness dimension tc. The remaining internal volume is completely filled with grout.
LUG PLATE PROPRIETARY INTERFACE MATERIAL (PIM) t c GROUT FILL CORE PLATE SECTION A-A AT TUBE
