Structural · S-YG9HT

Non-Bearing Wall Attachment to Floor Deck

Materials

Concrete Steel Timber / Wood

Elements

Walls Bearing Walls Floors / Slabs Decks Anchors / Embeds

Connections

Deck Attachment

About this detail

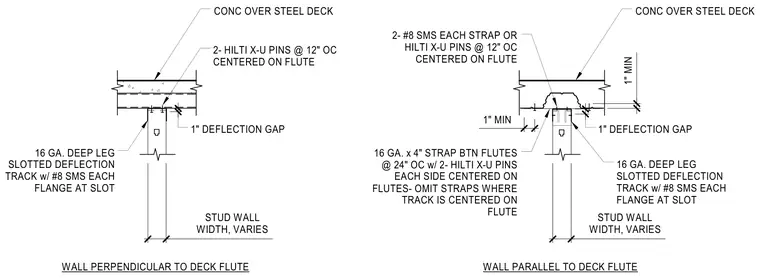

A non-bearing steel stud wall connects to a concrete-filled steel deck overhead, accommodating vertical deflection through a one-inch gap. For walls perpendicular to the deck flutes, a sixteen-gauge deep leg slotted deflection track fastens directly to the underside using two Hilti X-U pins at twelve inches on center centered on the flute, secured with two number eight self-tapping screws at each flange slot. For walls parallel to the deck flutes, the sixteen-gauge deep leg slotted deflection track uses sixteen-gauge by four-inch straps between flutes spaced at twenty-four inches on center, fastened with two Hilti X-U pins on each side centered on the flutes. These straps are omitted where the track aligns directly centered on the flute, and two number eight self-tapping screws or Hilti X-U pins are installed at twelve inches on center centered on the flute.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
