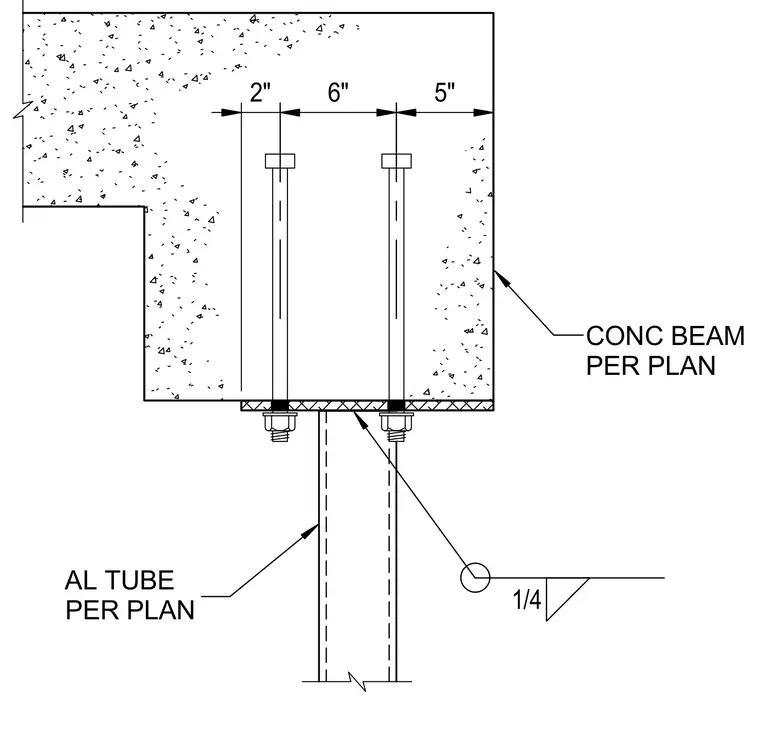

An aluminum tube connects to the underside of a concrete beam sized per plan. The assembly is secured using anchor bolts embedded in the concrete with specified edge and spacing dimensions of two inches, six inches, and five inches. A base plate sits between the concrete beam and the aluminum tube, fastened with nuts and washers. A one-quarter inch weld connects the assembly components.
