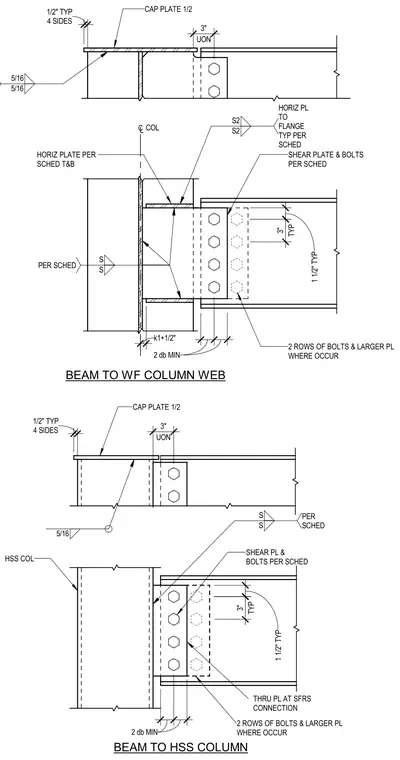

Steel beam connections frame into wide-flange column webs and hollow structural section columns using bolted shear plates and horizontal plates. The connection features a shear plate welded to the column and bolted to the beam web with two rows of bolts, sized per schedule. Horizontal plates are welded to the top and bottom flanges with five-sixteenths inch fillet welds typical. A one-half inch cap plate is welded on four sides at the top condition. A three-inch clearance is maintained unless noted otherwise, with a minimum bolt edge distance of two times the bolt diameter.
TYP 3" 1 1/2" TYP 2 ROWS OF BOLTS & LARGER PL WHERE OCCUR SHEAR PLATE & BOLTS PER SCHED 4 SIDES 1/2" TYP CAP PLATE 1/2 HORIZ PLATE PER SCHED T&B 2 db MIN UON 3" 5/16 5/16 S S PER SCHED S2 S2 HORIZ PL TO FLANGE TYP PER SCHED BEAM TO WF COLUMN WEB C L COL k1+1/2" TYP 3" 1 1/2" TYP SHEAR PL & BOLTS PER SCHED 4 SIDES 1/2" TYP CAP PLATE 1/2 HSS COL UON 3" 2 db MIN 5/16 S S PER SCHED THRU PL AT SFRS CONNECTION BEAM TO HSS COLUMN 2 ROWS OF BOLTS & LARGER PL WHERE OCCUR
