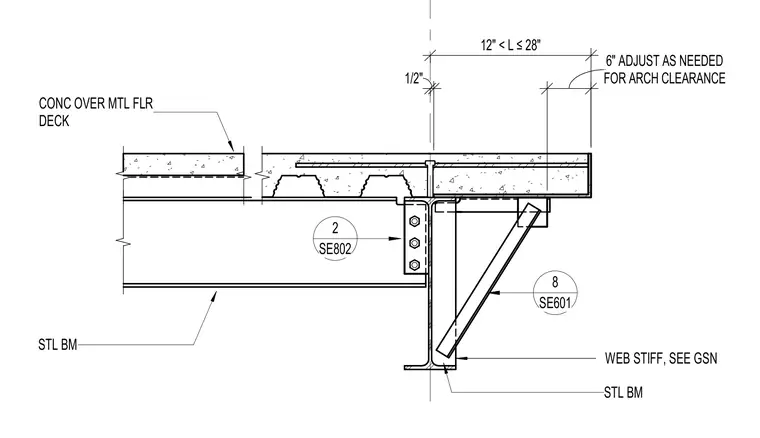

A concrete slab over metal floor deck bears on a structural steel beam assembly. The supporting steel beam features a web stiffener plate welded in place, with dimensions allowing six inches adjusted as needed for architectural clearance. A bolted beam connection ties into the web with reference to sheet SE802, while the stiffener layout is detailed per sheet SE601. Clearances of half an inch and a variable dimension range from twelve to twenty-eight inches are maintained across the framing interface.
CONC OVER MTL FLR DECK 1/2" 12" < L ≤ 28" STL BM STL BM WEB STIFF, SEE GSN 2 SE802 8 SE601 FOR ARCH CLEARANCE 6" ADJUST AS NEEDED
