Structural · S-YFNMS

Typical Steel Cap Plate Details for Gravity Columns

Materials

Steel

Elements

Columns Beams Connections / Plates

Connections

HSS Connection Bolted Connection

About this detail

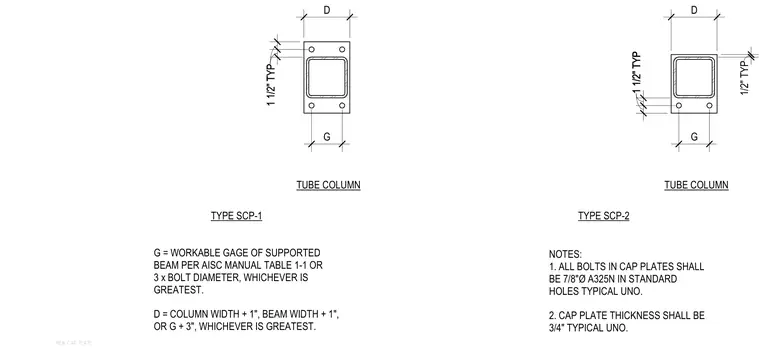

These typical details define the geometry and connection requirements for steel cap plates on hollow structural section tube columns. The assembly consists of a three-quarter-inch thick steel cap plate welded to the top of the tube column, sized according to column width, beam width, and workable gauge dimensions. All cap plate bolts are seven-eighths-inch diameter ASTM A325N installed in standard holes unless noted otherwise. Type SCP-1 features a four-bolt configuration, while Type SCP-2 features a two-bolt configuration.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
