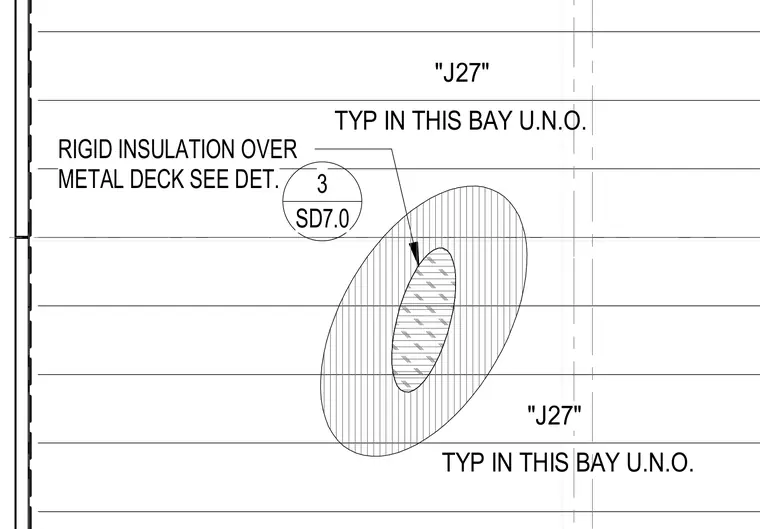

Rigid insulation is placed over a metal deck typical in this structural bay unless noted otherwise. The assembly is referenced to detail 3 on sheet SD7.0 for further construction information.
"J27" "J27" RIGID INSULATION OVER METAL DECK SEE DET. 3 SD7.0 TYP IN THIS BAY U.N.O. TYP IN THIS BAY U.N.O.
