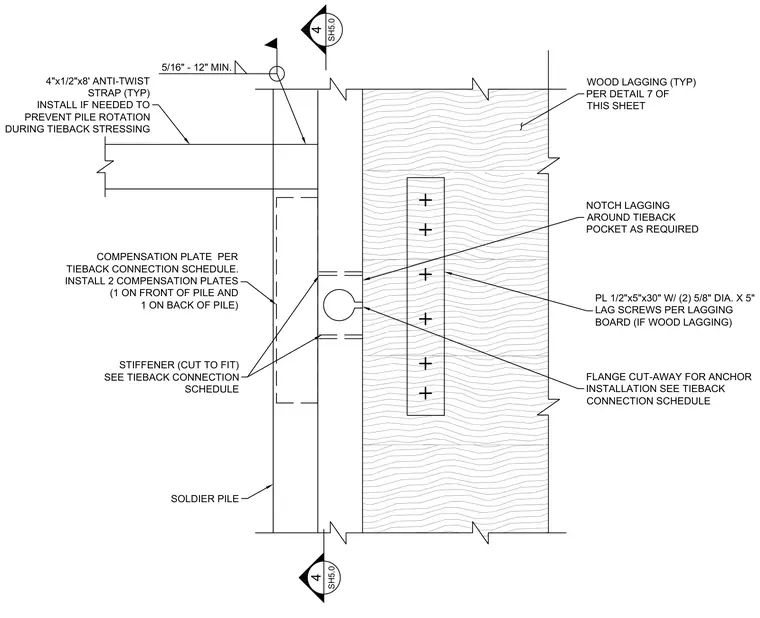

A tieback anchor connects to a steel soldier pile with wood lagging. The assembly incorporates a four-inch by one-half-inch by eight-foot anti-twist strap installed when needed to prevent pile rotation during tieback stressing. Two compensation plates are positioned on the front and back of the pile along with a cut-to-fit stiffener per the tieback connection schedule. The soldier pile flange features a cut-away for anchor installation, and the wood lagging is notched around the tieback pocket as required. Wood lagging boards are secured with a one-half-inch by five-inch by thirty-inch plate fastened using two five-eighth-inch diameter by five-inch lag screws per lagging board.
4 SH5.0 4 SH5.0 5/16" - 12" MIN. 4"x1/2"x8' ANTI-TWIST STRAP (TYP) INSTALL IF NEEDED TO PREVENT PILE ROTATION DURING TIEBACK STRESSING COMPENSATION PLATE PER TIEBACK CONNECTION SCHEDULE. INSTALL 2 COMPENSATION PLATES (1 ON FRONT OF PILE AND 1 ON BACK OF PILE) STIFFENER (CUT TO FIT) SEE TIEBACK CONNECTION SCHEDULE SOLDIER PILE NOTCH LAGGING AROUND TIEBACK POCKET AS REQUIRED WOOD LAGGING (TYP) PER DETAIL 7 OF THIS SHEET PL 1/2"x5"x30" W/ (2) 5/8" DIA. X 5" LAG SCREWS PER LAGGING BOARD (IF WOOD LAGGING) FLANGE CUT-AWAY FOR ANCHOR INSTALLATION SEE TIEBACK CONNECTION SCHEDULE
