A wide-flange steel column is anchored to a concrete pier and grade beam foundation assembly. The steel column sits on a base plate connection located at elevation 1.50. The concrete pier is reinforced with eight number seven reinforcing bars each way, top and bottom. A grade beam intersects the pier, with reinforcement detailed on a separate sheet. The overall dimensions of the concrete element are three feet by four feet six inches.

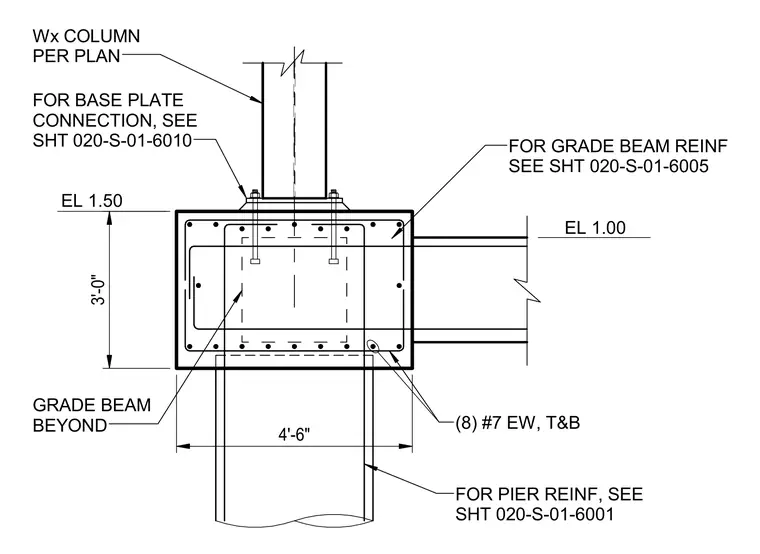

3'-0" 4'-6" EL 1.50 EL 1.00 Wx COLUMN PER PLAN FOR GRADE BEAM REINF SEE SHT 020-S-01-6005 (8) #7 EW, T&B FOR PIER REINF, SEE SHT 020-S-01-6001 FOR BASE PLATE CONNECTION, SEE SHT 020-S-01-6010 GRADE BEAM BEYOND
