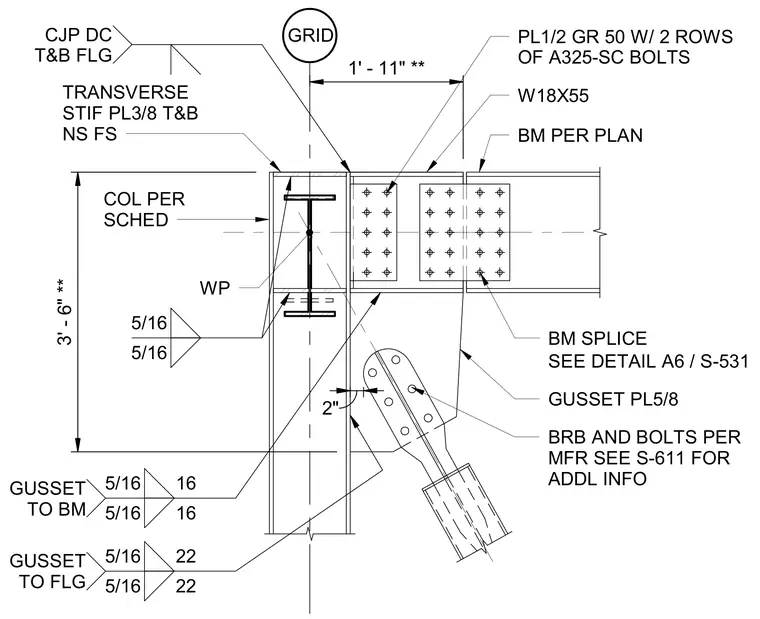

A buckling restrained brace connects to a steel column and W18x55 beam using a five-eighths-inch thick gusset plate. The column receives five-sixteenths-inch fillet welds securing the gusset plate to both the flange and the beam web. Transverse stiffener plates three-eighths-inch thick are welded to the top and bottom on near side and far side at the column. A beam splice features a one-half-inch Grade 50 plate with two rows of A325 slip-critical bolts, complemented by complete joint penetration welds at the top and bottom flanges. The buckling restrained brace attaches with bolts per the manufacturer requirements.
GRID BM PER PLAN 3' - 6" ** 1' - 11" ** BRB AND BOLTS PER MFR SEE S-611 FOR ADDL INFO GUSSET PL5/8 WP 5/16 16 5/16 16 GUSSET TO BM 5/16 22 5/16 22 GUSSET TO FLG COL PER SCHED 2" BM SPLICE SEE DETAIL A6 / S-531 W18X55 CJP DC T&B FLG PL1/2 GR 50 W/ 2 ROWS OF A325-SC BOLTS TRANSVERSE STIF PL3/8 T&B NS FS 5/16 5/16
