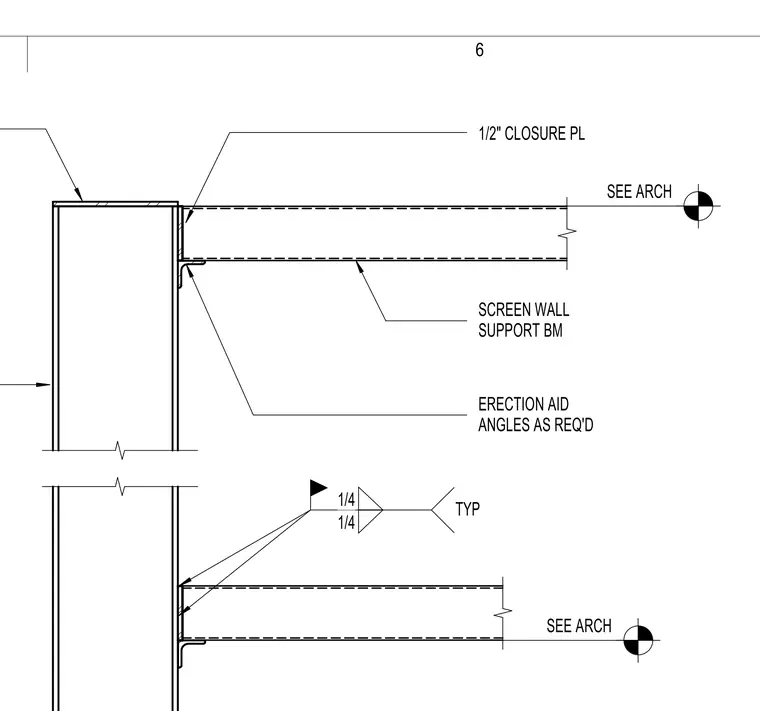

A screen wall support beam connects to the main structural member with erection aid angles as required, supplemented by a one-half-inch closure plate at the top. Fillet welds of one-quarter-inch size are applied typically along the connection interfaces. Architectural coordination references apply to the extending portions of the support beam.
1/2" CLOSURE PL ERECTION AID ANGLES AS REQ'D SCREEN WALL SUPPORT BM TYP 1/4 1/4 SEE ARCH SEE ARCH 6
