An HSS post is welded to a steel base plate with a three-sixteenths inch fillet weld on all sides, with finished bearing surfaces provided at the column end and plate top. The base plate is secured to a concrete footing or floor using two three-quarter inch diameter F1554 Grade 36 anchor rods with heavy hex nuts or rod heads. A one inch minimum non-shrink grout layer is placed beneath the base plate, maintaining a one and one-half inch minimum rod projection above the grout.

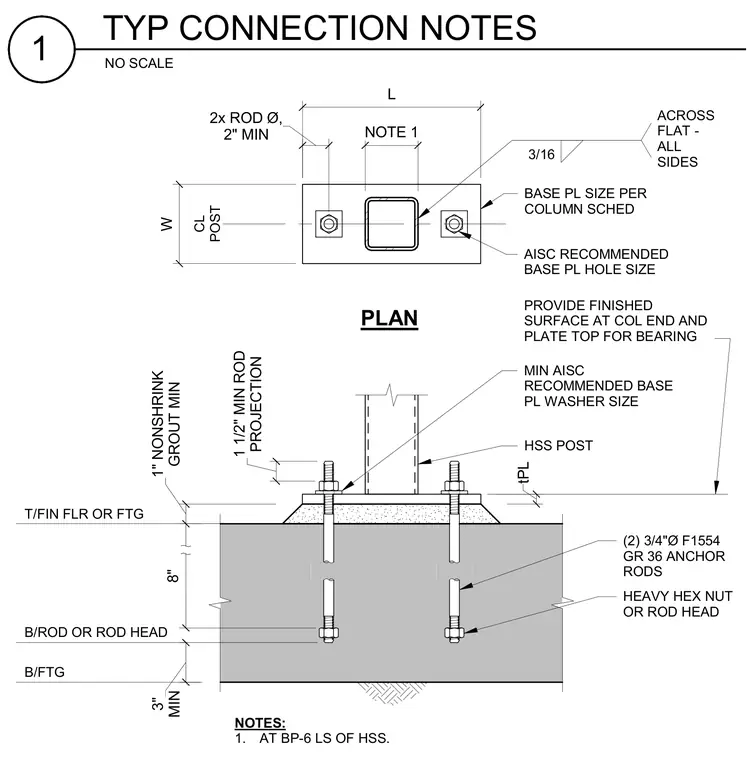

B/FTG T/FIN FLR OR FTG B/ROD OR ROD HEAD 3/16 ACROSS FLAT - ALL SIDES BASE PL SIZE PER COLUMN SCHED CL POST (2) 3/4"Ø F1554 GR 36 ANCHOR RODS HEAVY HEX NUT OR ROD HEAD HSS POST PLAN MIN 3" AISC RECOMMENDED BASE PL HOLE SIZE MIN AISC RECOMMENDED BASE PL WASHER SIZE PROVIDE FINISHED SURFACE AT COL END AND PLATE TOP FOR BEARING L W 2" MIN 2x ROD Ø, tPL PROJECTION 1 1/2" MIN ROD 8" GROUT MIN 1" NONSHRINK NOTE 1 NOTES: 1. AT BP-6 LS OF HSS. NO SCALE 1 TYP CONNECTION NOTES
