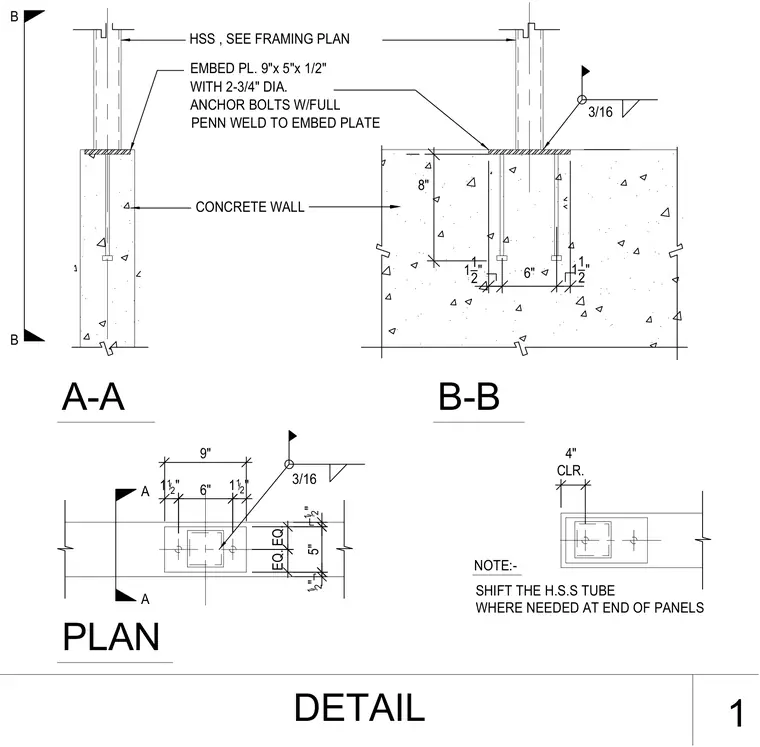

A hollow structural section column bears on a nine-inch by five-inch by one-half-inch steel embed plate secured into an eight-inch concrete wall with two three-quarter-inch diameter anchor bolts. The structural tube welds to the embed plate with a three-sixteenth-inch fillet weld. The assembly details eccentric placement of the tube shifted with a four-inch clearance at panel ends.
A A B NOTE:- B 3/16 3/16 1/2 " 5" 1/2 " EQ. EQ. 9" 1 1 /2 " 6" 1 1 /2 " HSS , SEE FRAMING PLAN ANCHOR BOLTS W/FULL WITH 2-3/4" DIA. EMBED PL. 9"x 5"x 1/2" PENN WELD TO EMBED PLATE 1 1_ 2 " 1 1_ 2 " 6" CONCRETE WALL 8" SHIFT THE H.S.S TUBE WHERE NEEDED AT END OF PANELS 4" CLR. 1 DETAIL PLAN A-A B-B
