Structural · S-YENY3

Moment Frame Beam to Column Connection at Floor

Materials

Concrete Steel Timber / Wood Metal (misc.)

Elements

Columns Beams Floors / Slabs Decks Anchors / Embeds Connections / Plates

Connections

Welded Connection Shear Stud / Composite Deck Attachment

About this detail

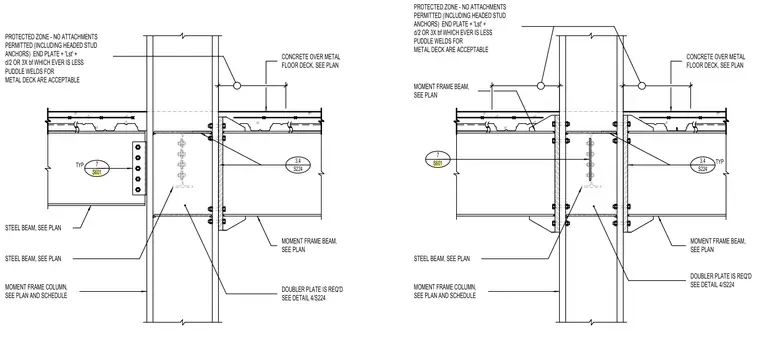

Moment frame steel beams connect to a structural steel column supporting a concrete over metal floor deck slab. A doubler plate is required at the column web per detail reference. A protected zone is designated along the beam where no attachments, including headed stud anchors, are permitted, though end plates, stiffeners, and puddle welds for the metal deck remain acceptable within specified limits.
