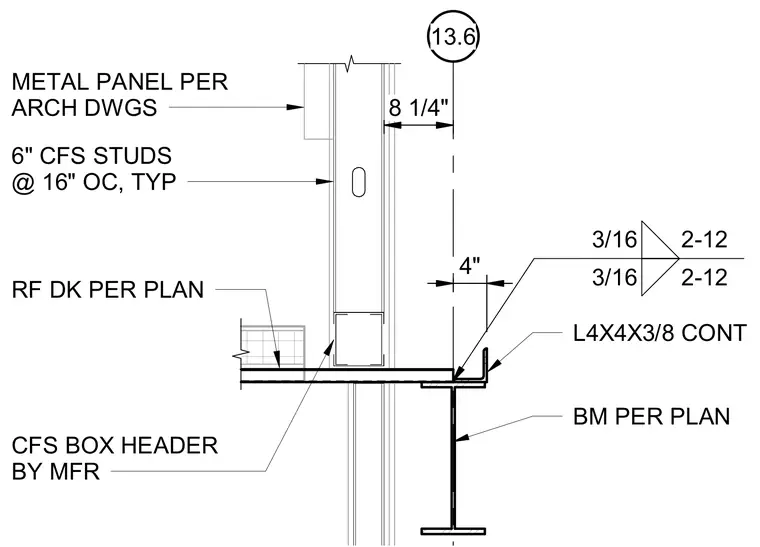

Cold-formed steel framing featuring a manufacturer-specified cold-formed steel box header and six-inch cold-formed steel studs spaced at sixteen inches on center bears above the roof deck. A continuous four-by-four-by-three-eighths-inch angle connects to the structural steel beam sized per plan using three-sixteenths-inch welds. Exterior metal panels are detailed per architectural drawings outside the six-inch stud framing.
13.6 6" CFS STUDS @ 16" OC, TYP METAL PANEL PER ARCH DWGS BM PER PLAN CFS BOX HEADER BY MFR 8 1/4" RF DK PER PLAN 4" L4X4X3/8 CONT 3/16 2-12 3/16 2-12
