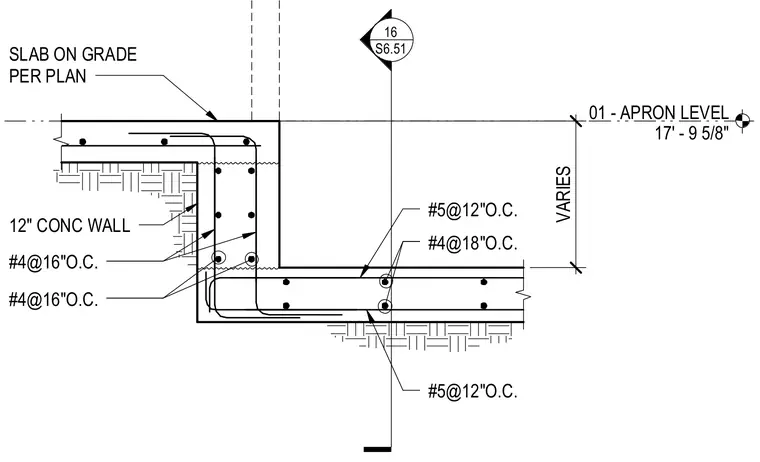

A slab on grade steps down to a lower level supported by a twelve-inch concrete wall. The upper slab contains number four reinforcing bars spaced at sixteen inches on center. The concrete wall is reinforced with number four bars at sixteen inches on center. The lower slab includes number five reinforcing bars at twelve inches on center and number four bars at eighteen inches on center.
01 - APRON LEVEL 17' - 9 5/8" 16 S6.51 VARIES SLAB ON GRADE PER PLAN #4@18"O.C. #5@12"O.C. #4@16"O.C. #5@12"O.C. 12" CONC WALL #4@16"O.C.
