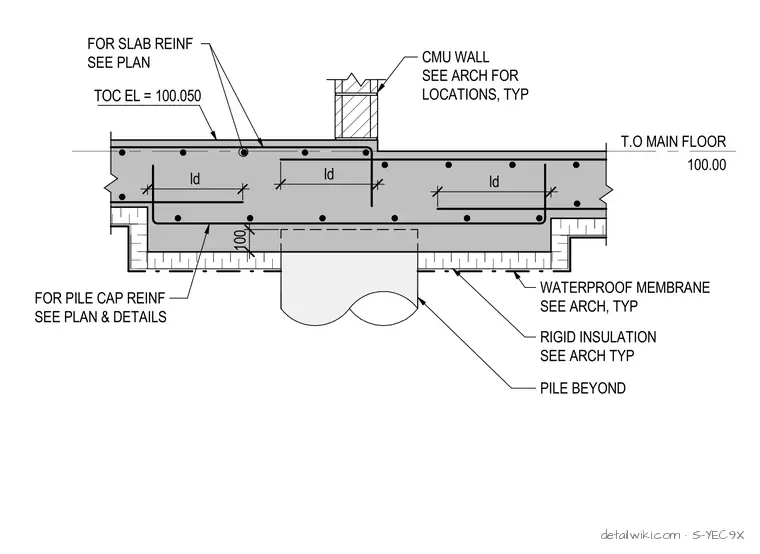

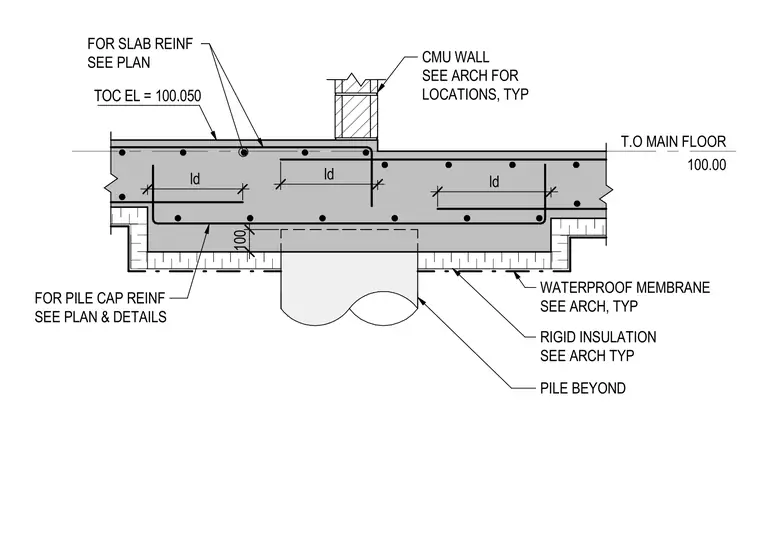

This structural detail shows a reinforced concrete slab bearing on a pile cap with a top of main floor elevation at 100.00 and top of concrete elevation at 100.050. The concrete slab features reinforcing steel detailed with development lengths as indicated on the structural plans. A concrete masonry unit wall bears on the slab with locations specified per architectural drawings. Below the slab and pile cap, a continuous layer of rigid insulation and a waterproof membrane wrap the exterior surfaces. A pile extends upward into the pile cap from below.
T.O MAIN FLOOR 100.00 CMU WALL SEE ARCH FOR LOCATIONS, TYP TOC EL = 100.050 100 FOR SLAB REINF SEE PLAN FOR PILE CAP REINF SEE PLAN & DETAILS ld ld ld PILE BEYOND RIGID INSULATION SEE ARCH TYP WATERPROOF MEMBRANE SEE ARCH, TYP
