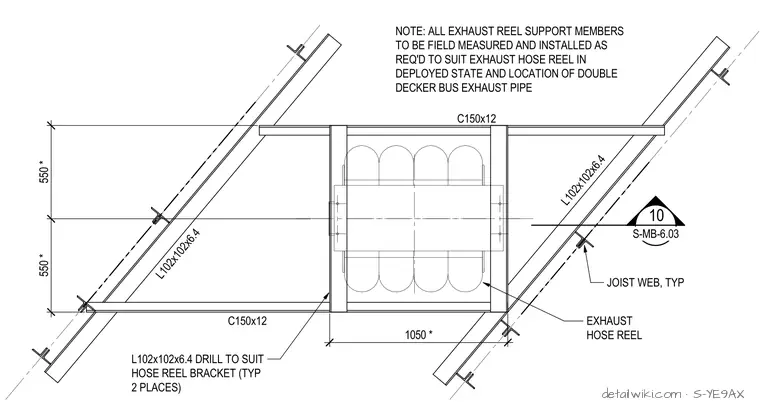

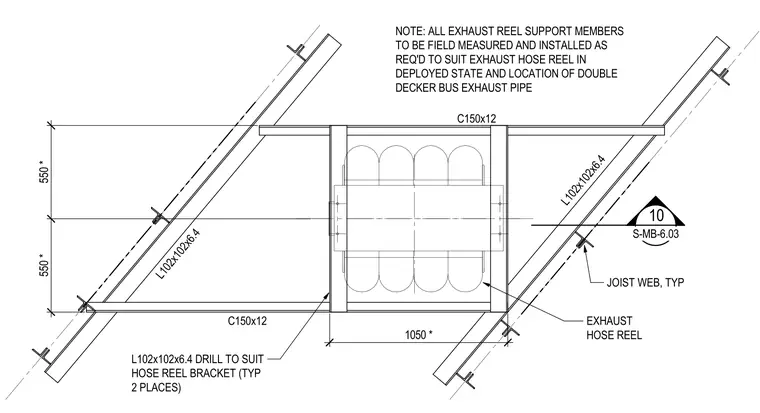

The assembly incorporates structural steel channel sections (C150x12) and angle sections (L102x102x6.4) to create a mounting platform supported by joist webs. Specific notes indicate that members are to be field measured and installed to suit the exhaust hose reel in its deployed state, taking into account the location of a double decker bus exhaust pipe. The steel angles are drilled to suit the hose reel bracket.
Text on the drawing
L102x102x6.4 DRILL TO SUIT HOSE REEL BRACKET (TYP 2 PLACES) 1050 * JOIST WEB, TYP 550 * 550 * C150x12 C150x12 L102x102x6.4 L102x102x6.4 EXHAUST HOSE REEL NOTE: ALL EXHAUST REEL SUPPORT MEMBERS TO BE FIELD MEASURED AND INSTALLED AS REQ'D TO SUIT EXHAUST HOSE REEL IN DEPLOYED STATE AND LOCATION OF DOUBLE DECKER BUS EXHAUST PIPE 10 S-MB-6.03
