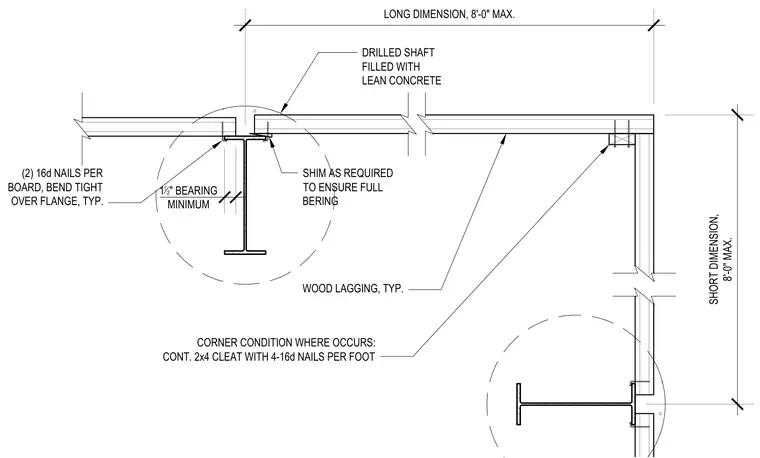

Wood lagging boards span between steel soldier piles set in drilled shafts filled with lean concrete. Each board requires a one-and-one-half-inch minimum bearing on the pile flange with two sixteen-penny nails per board bent tight over the flange. Shims are added as required to ensure full bearing against the flange. At corner conditions, a continuous two-by-four wood cleat is installed with four sixteen-penny nails per foot. The maximum spacing dimensions are eight feet by eight feet.
LONG DIMENSION, 8'-0" MAX. SHORT DIMENSION, 8'-0" MAX. DRILLED SHAFT FILLED WITH LEAN CONCRETE SHIM AS REQUIRED TO ENSURE FULL BERING CORNER CONDITION WHERE OCCURS: CONT. 2x4 CLEAT WITH 4-16d NAILS PER FOOT 1 12 " BEARING MINIMUM (2) 16d NAILS PER BOARD, BEND TIGHT OVER FLANGE, TYP. WOOD LAGGING, TYP. X / / 7
