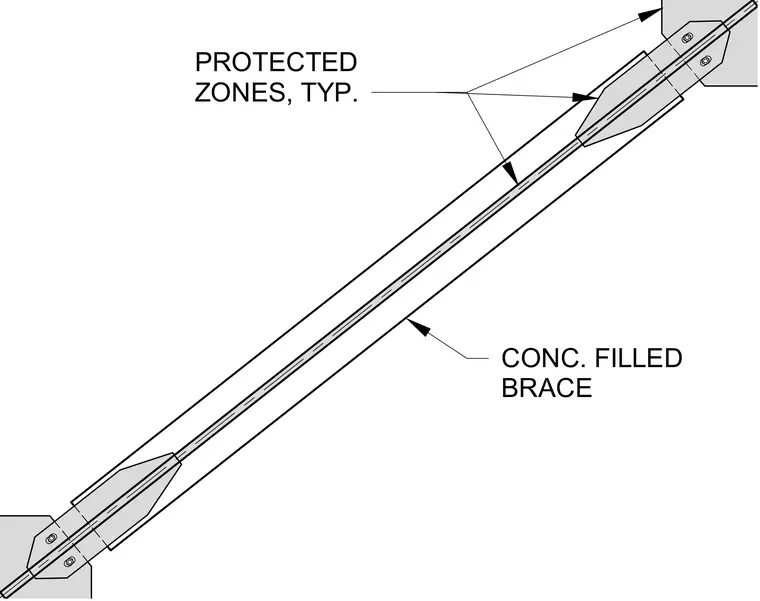

A concrete-filled structural brace connects between structural frame nodes using gusset plates secured with bolted connections. Designated protected zones are established at both ends and along the brace length per seismic detailing requirements. The assembly accommodates lateral load resistance while maintaining ductile performance in the designated plastic hinge regions.
CONC. FILLED BRACE PROTECTED ZONES, TYP.
