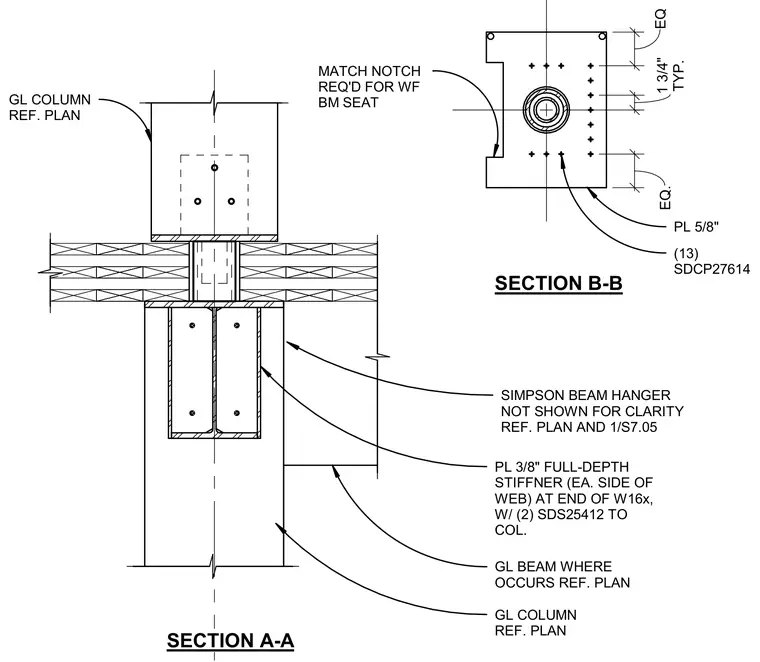

A timber beam frames into a glulam column with proprietary wood screws and steel plates. Three-eighths-inch thick full-depth stiffener plates are installed on each side of the web at the end of the wide-flange beam, secured with two SDS25412 structural screws to the column. A five-eighths-inch thick connection plate utilizes thirteen SDCP27614 screws spaced symmetrically with equalized edge distances. A Simpson beam hanger is referenced on the plan but omitted from the elevation view for clarity. A matched notch is required to accommodate the wide-flange beam seat.
EQ TYP. 1 3/4" EQ. (13) SDCP27614 PL 5/8" MATCH NOTCH REQ'D FOR WF BM SEAT SECTION A-A PL 3/8" FULL-DEPTH STIFFNER (EA. SIDE OF WEB) AT END OF W16x, W/ (2) SDS25412 TO COL. SIMPSON BEAM HANGER NOT SHOWN FOR CLARITY REF. PLAN AND 1/S7.05 GL BEAM WHERE OCCURS REF. PLAN GL COLUMN REF. PLAN GL COLUMN REF. PLAN SECTION B-B
