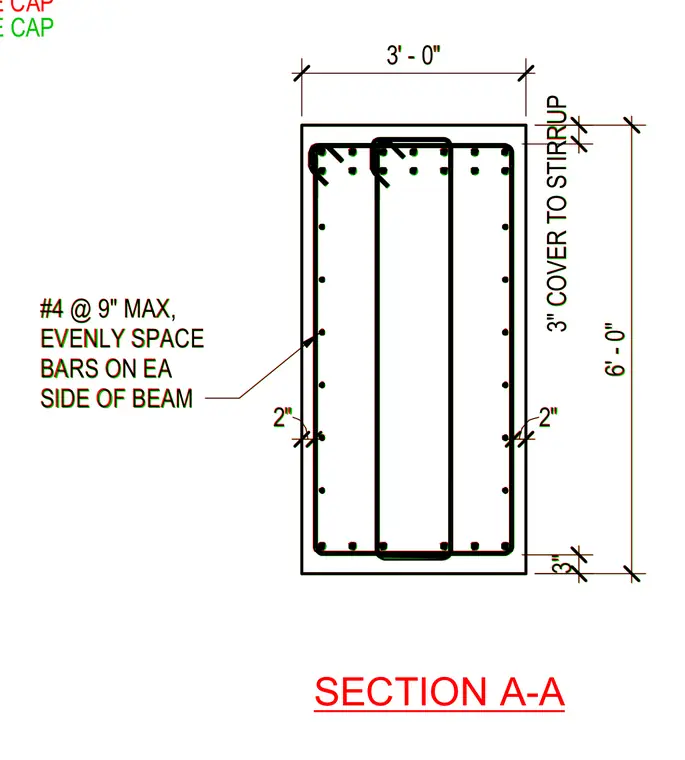

A reinforced concrete pile cap and beam section measures three feet wide by six feet high. The assembly features perimeter stirrups with a three-inch concrete cover. Additional reinforcement includes number four bars spaced at a maximum of nine inches, evenly spaced on each side of the beam.
3" COVER TO STIRRUP 3' - 0" 2" 6' - 0" 3" 2" PILE CAP #4 @ 9" MAX, EVENLY SPACE BARS ON EA SIDE OF BEAM SECTION A-A 3" COVER TO STIRRUP 3' - 0" 2" 6' - 0" 3" 2" PILE CAP #4 @ 9" MAX, EVENLY SPACE BARS ON EA SIDE OF BEAM
