Cold-formed steel wall studs terminate below a structural overhead assembly with a vertical deflection gap. A ClarkDietrich Building Systems deep leg deflection track attaches to the overhead structure as required per design. A matching ClarkDietrich deep leg capping track fits over the top of the wall studs, with the inside dimension of the outer track measuring one-eighth inch greater than the stud depth. One number 10-16 self-drilling screw secures each flange of the capping track to the stud, while track-to-track connections remain unattached to allow for vertical movement. The engineer of record verifies the required gap depth.

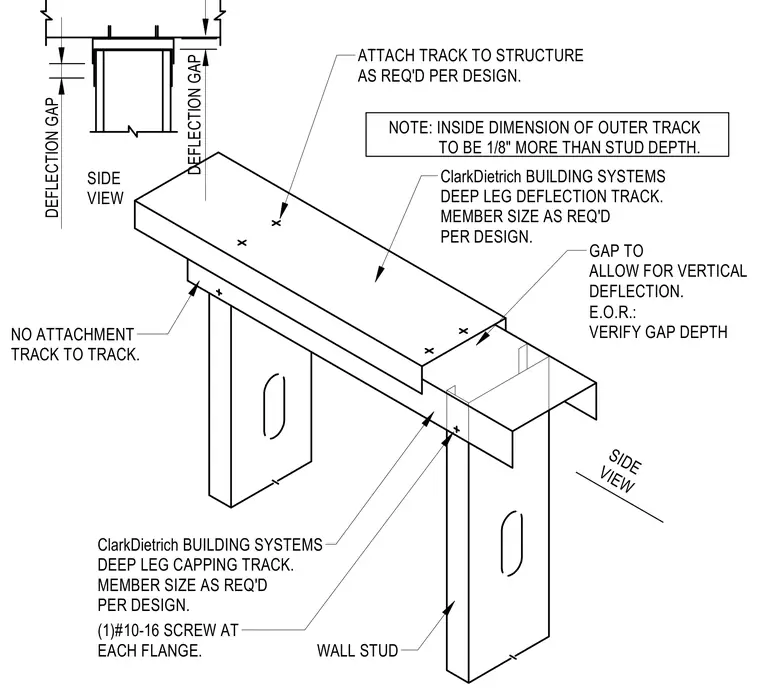

DEFLECTION GAP DEFLECTION GAP WALL STUD (1)#10-16 SCREW AT EACH FLANGE. GAP TO ALLOW FOR VERTICAL DEFLECTION. ATTACH TRACK TO STRUCTURE AS REQ'D PER DESIGN. ClarkDietrich BUILDING SYSTEMS DEEP LEG DEFLECTION TRACK. MEMBER SIZE AS REQ'D PER DESIGN. ClarkDietrich BUILDING SYSTEMS DEEP LEG CAPPING TRACK. MEMBER SIZE AS REQ'D PER DESIGN. NOTE: INSIDE DIMENSION OF OUTER TRACK TO BE 1/8" MORE THAN STUD DEPTH. NO ATTACHMENT TRACK TO TRACK. E.O.R.: VERIFY GAP DEPTH SIDE VIEW SIDE VIEW
