Concrete Wall Opening Reinforcement and Lintel Detail

Elements

About this detail

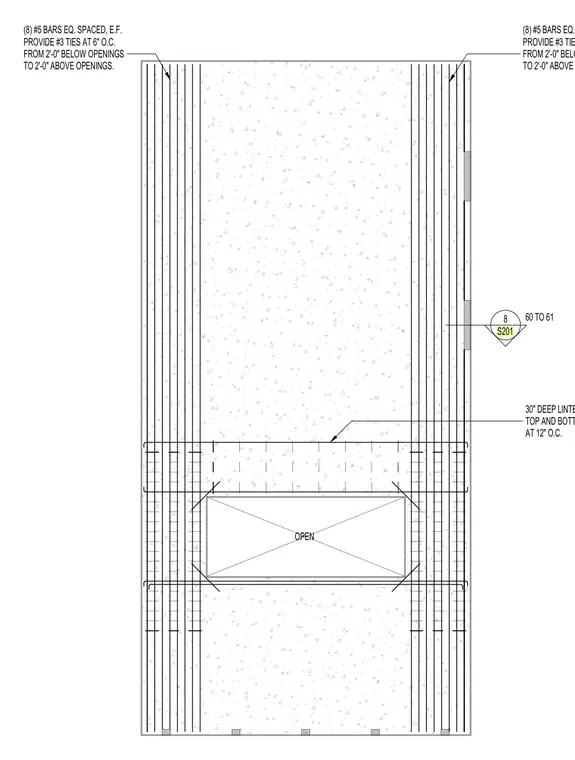

Concrete reinforcement layout around a wall opening. The jambs feature eight equally spaced number five bars on each face, with number three ties at six inches on center extending from two feet below the opening to two feet above. A thirty-inch deep lintel spans the top of the opening with two number five bars at both the top and bottom, reinforced by number three stirrups at twelve inches on center.
