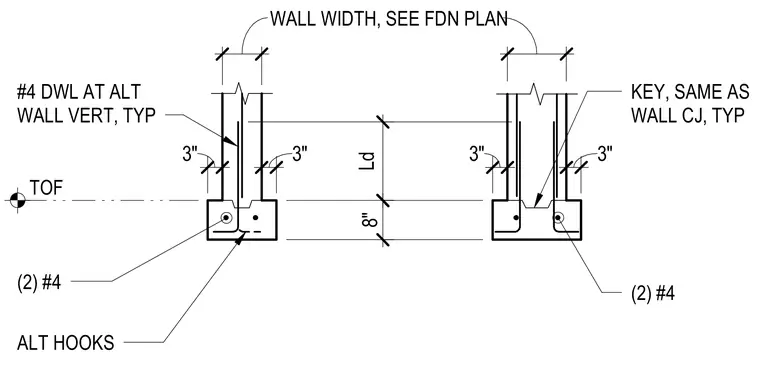

Vertical dowels are positioned at alternating wall verticals and anchored into the footing with alternating hooks for a cast-in-place concrete wall. Two number four longitudinal reinforcing bars run continuously within the eight-inch deep concrete footing. A construction keyway matches the wall control joint profile as detailed on the foundation plan.
TOF Ld 8" 8" 12" #4 DWL AT ALT WALL VERT, TYP KEY, SAME AS WALL CJ, TYP (2) #4 (2) #4 ALT HOOKS WALL WIDTH, SEE FDN PLAN 3" 3" 3" 3"
