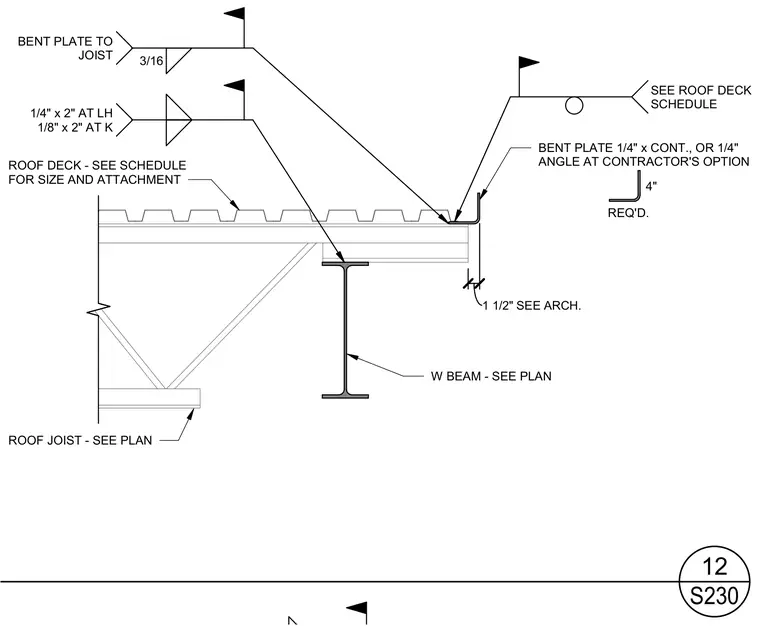

A continuous one-quarter-inch bent plate or alternative one-quarter-inch angle is installed at the roof edge, with sizing and attachment per the roof deck schedule. The metal roof deck bears across the top of a wide-flange beam and roof joist, sized per plan. A three-sixteenth-inch fillet weld secures the bent plate to the joist. A field weld of one-quarter-inch by two inches applies at long span joists, and one-eighth-inch by two inches at web-type joists.
BENT PLATE 1/4" x CONT., OR 1/4" ANGLE AT CONTRACTOR'S OPTION W BEAM - SEE PLAN ROOF JOIST - SEE PLAN 4" REQ'D. 1 1/2" SEE ARCH. 3/16 BENT PLATE TO JOIST SEE ROOF DECK SCHEDULE 1/4" x 2" AT LH 1/8" x 2" AT K ROOF DECK - SEE SCHEDULE FOR SIZE AND ATTACHMENT S230 12
