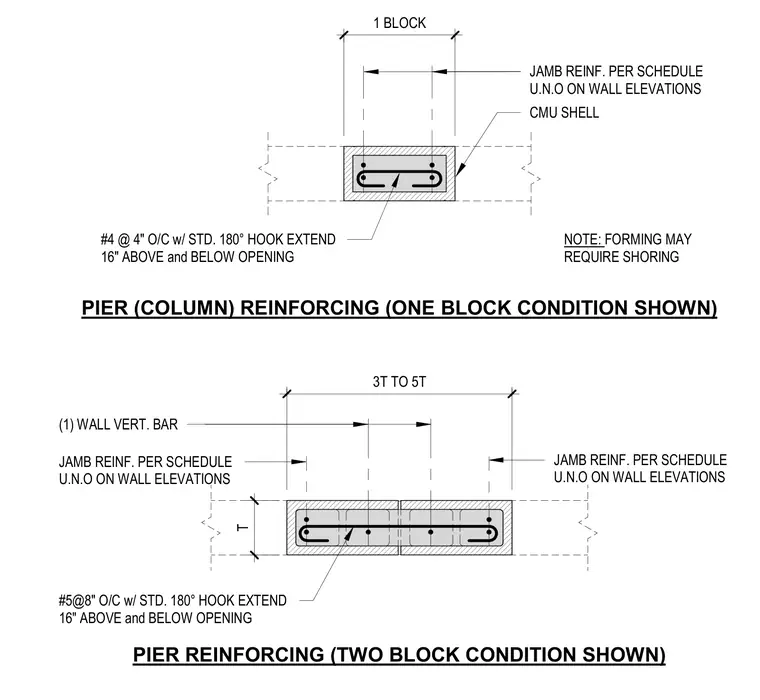

Concrete masonry unit pier reinforcing features one and two block conditions. The CMU shell is reinforced with number four bars spaced at four inches on center with standard one hundred eighty-degree hooks for the one-block condition, extending sixteen inches above and below the opening. The two-block condition utilizes number five bars spaced at eight inches on center with standard one hundred eighty-degree hooks. Jamb reinforcing is provided per schedule unless noted otherwise on wall elevations. Forming may require shoring as indicated in the notes.
JAMB REINF. PER SCHEDULE U.N.O ON WALL ELEVATIONS #4 @ 4" O/C w/ STD. 180° HOOK (1) WALL VERT. BAR #5@8" O/C w/ STD. 180° HOOK PIER (COLUMN) REINFORCING (ONE BLOCK CONDITION SHOWN) PIER REINFORCING (TWO BLOCK CONDITION SHOWN) 1 BLOCK 3T TO 5T T JAMB REINF. PER SCHEDULE U.N.O ON WALL ELEVATIONS JAMB REINF. PER SCHEDULE U.N.O ON WALL ELEVATIONS NOTE: FORMING MAY REQUIRE SHORING CMU SHELL JAMB REINF. PER SCHEDULE U.N.O ON WALL ELEVATIONS #4 @ 4" O/C w/ STD. 180° HOOK EXTEND 16" ABOVE and BELOW OPENING (1) WALL VERT. BAR #5@8" O/C w/ STD. 180° HOOK EXTEND 16" ABOVE and BELOW OPENING PIER (COLUMN) REINFORCING (ONE BLOCK CONDITION SHOWN) PIER REINFORCING (TWO BLOCK CONDITION SHOWN) 1 BLOCK 3T TO 5T T JAMB REINF. PER SCHEDULE U.N.O ON WALL ELEVATIONS JAMB REINF. PER SCHEDULE U.N.O ON WALL ELEVATIONS NOTE: FORMING MAY REQUIRE SHORING CMU SHELL
