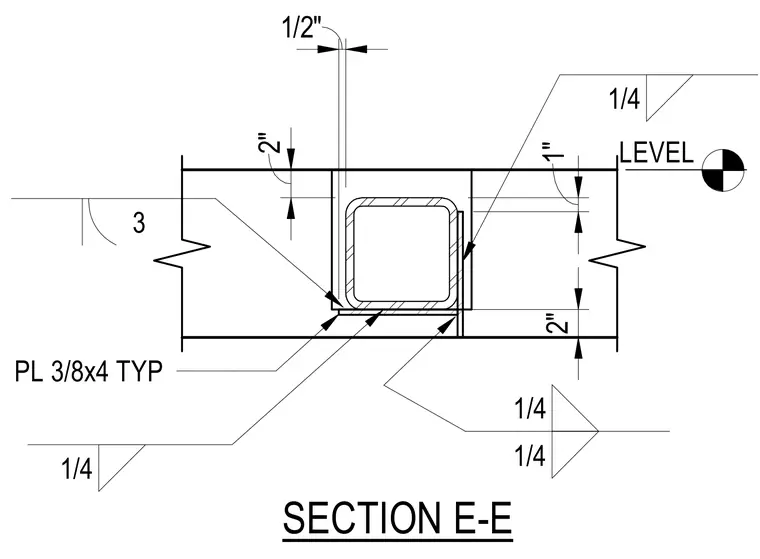

This structural detail shows a hollow structural section member intersecting a framing assembly with level alignment. Three-eighths by four inch plates are tied into the joint typically. Quarter inch fillet welds secure the steel plates and members at specified clearance intervals including one-half inch, two inch, and one inch dimensions.
