An HSS8x6x1/4 hollow structural section column ties into a concrete masonry unit wall utilizing a one-quarter-inch steel bent plate with four-inch legs. A track strap is secured to the angle above and below the HSS using one-eighth-inch welds with fourteen-gauge material. Studs above and below the HSS are anchored using one-half-inch diameter Titen HD anchors with a four-inch embedment into the masonry at sixteen inches on center and within four inches of ends. The right flange of the track strap is clipped to allow for a lap over the angle with a five-inch minimum dimension.

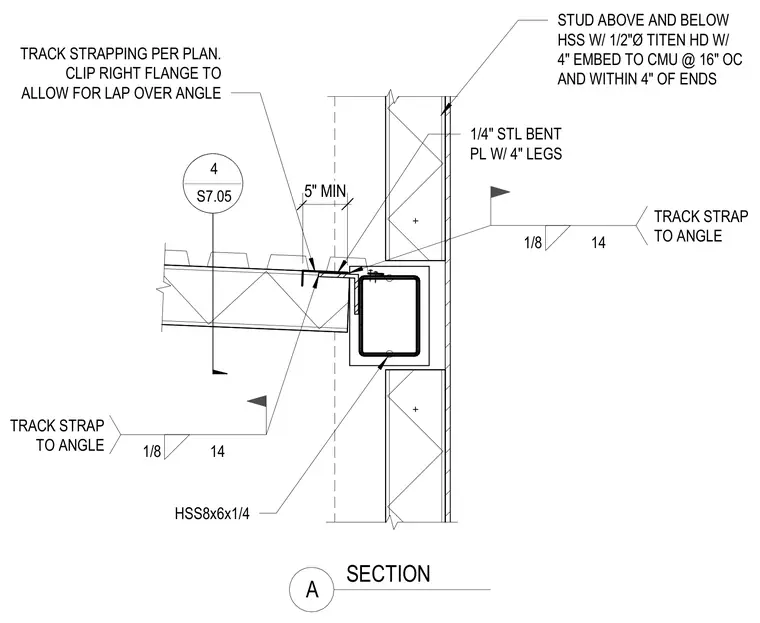

HSS8x6x1/4 1/4" STL BENT PL W/ 4" LEGS A SECTION 4 S7.05 _________________________________________________________________________________ TRACK STRAPPING PER PLAN. CLIP RIGHT FLANGE TO ALLOW FOR LAP OVER ANGLE 1/8 14 TRACK STRAP TO ANGLE STUD ABOVE AND BELOW HSS W/ 1/2"Ø TITEN HD W/ 4" EMBED TO CMU @ 16" OC AND WITHIN 4" OF ENDS 5" MIN 1/8 14 TRACK STRAP TO ANGLE
