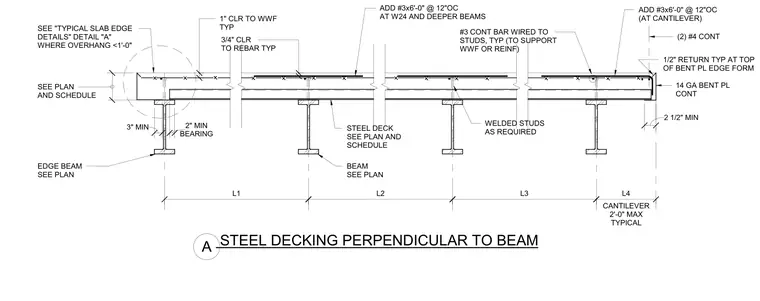

A concrete slab is poured over steel decking running perpendicular to supporting steel beams. Welded studs are attached to the top flange of the beams as required, with additional number three reinforcing bars at six feet zero inches on center for deep beams and cantilevers. A fourteen gauge continuous bent plate edge form creates the slab edge with a two-foot maximum cantilever and a half-inch top return. A continuous number three bar is wired to the studs to support welded wire fabric or reinforcement, maintaining specified clearances of one inch to the fabric and three-quarters of an inch to the rebar. Minimum bearing requirements include three inches at end supports and two inches at intermediate locations.
ADD #3x6'-0" @ 12"OC (AT CANTILEVER) STEEL DECKING PERPENDICULAR TO BEAM #3 CONT BAR WIRED TO STUDS, TYP (TO SUPPORT WWF OR REINF) SEE PLAN AND SCHEDULE EDGE BEAM SEE PLAN BEAM SEE PLAN STEEL DECK SEE PLAN AND SCHEDULE WELDED STUDS AS REQUIRED ADD #3x6'-0" @ 12"OC AT W24 AND DEEPER BEAMS 14 GA BENT PL CONT (2) #4 CONT CANTILEVER 2'-0" MAX TYPICAL SEE "TYPICAL SLAB EDGE DETAILS" DETAIL "A" WHERE OVERHANG <1'-0" 1/2" RETURN TYP AT TOP OF BENT PL EDGE FORM L1 L2 L3 L4 2 1/2" MIN . 3" MIN BEARING 2" MIN 1" CLR TO WWF TYP 3/4" CLR TO REBAR TYP A . .
