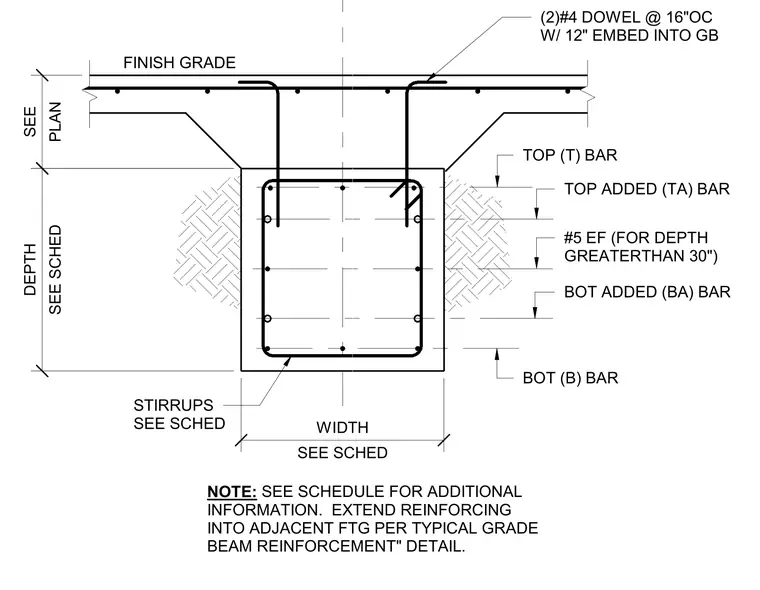

A concrete grade beam is reinforced with continuous top and bottom bars, additional reinforcing bars, and stirrups sized per the structural schedule. Two number four dowels spaced at sixteen inches on center embed twelve inches into the grade beam. Number five bars run each face for depths greater than thirty inches. The entire assembly ties into adjacent footings per standard foundation details.
NOTE: SEE SCHEDULE FOR ADDITIONAL INFORMATION. EXTEND REINFORCING INTO ADJACENT FTG PER TYPICAL GRADE BEAM REINFORCEMENT" DETAIL. FINISH GRADE SEE SCHED DEPTH PLAN SEE SEE SCHED WIDTH (2)#4 DOWEL @ 16"OC W/ 12" EMBED INTO GB STIRRUPS SEE SCHED TOP (T) BAR BOT (B) BAR TOP ADDED (TA) BAR BOT ADDED (BA) BAR #5 EF (FOR DEPTH GREATERTHAN 30")
