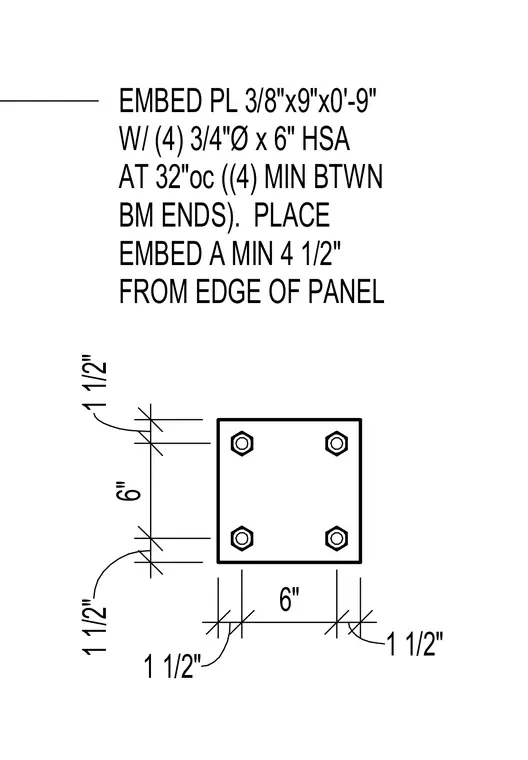

An embed plate measuring three-eighths by nine by nine inches features four three-quarter-inch diameter by six-inch heavy stud anchors spaced at thirty-two inches on center. The plate requires a minimum of four anchors between beam ends. The embed plate must be placed a minimum of four and one-half inches from the edge of the panel, with specific edge clearances of one and one-half inches and six inches.
EMBED PL 3/8"x9"x0'-9" W/ (4) 3/4"Ø x 6" HSA AT 32"oc ((4) MIN BTWN BM ENDS). PLACE EMBED A MIN 4 1/2" FROM EDGE OF PANEL 1 1/2" 6" 1 1/2" 1 1/2" 6" 1 1/2"
