Structural · S-YCP5Z

Standard Hook and Tie Details

Elements

Connections

About this detail

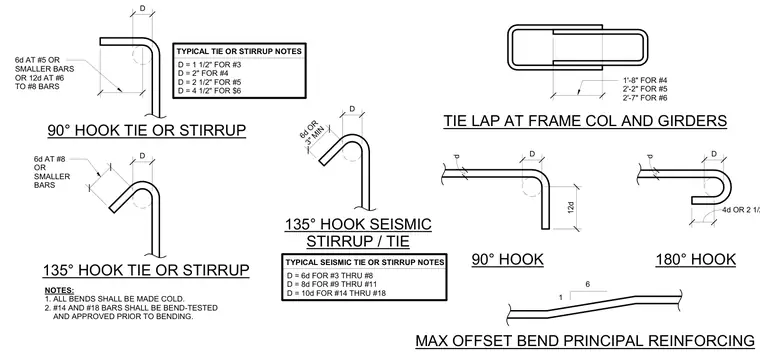

Standard detailing configurations show bend radii, extension lengths, and lap splices for reinforcing steel bars. Bends include ninety-degree and one-hundred-thirty-five-degree seismic hooks on ties and stirrups, standard ninety-degree and one-hundred-eighty-degree hooks, tie laps at frame columns and girders, and maximum offset bends for principal reinforcing. Bend dimensions are specified by bar size, with standard pin diameters ranging from one and one-half inches for number three bars up to four and one-half inches for number six bars, and bar diameter multiples for larger sizes. All bends are required to be made cold, with number fourteen and eighteen bars bend-tested and approved prior to bending.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
