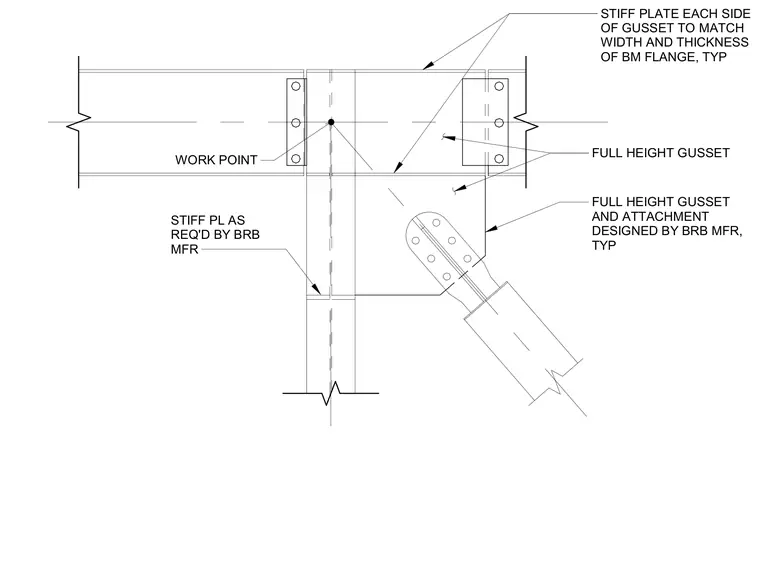

A bolted lug buckling-restrained brace connection frames into a weak-axis column and beam intersection at the roof level. A full-height gusset plate connects to the structural members, supplemented by stiffener plates on each side of the gusset matching the width and thickness of the beam flange. Additional stiffener plates are provided as required by the buckling-restrained brace manufacturer. The brace attaches via a bolted lug connection centered on the work point.
WORK POINT STIFF PL AS REQ'D BY BRB MFR STIFF PLATE EACH SIDE OF GUSSET TO MATCH WIDTH AND THICKNESS OF BM FLANGE, TYP FULL HEIGHT GUSSET FULL HEIGHT GUSSET AND ATTACHMENT DESIGNED BY BRB MFR, TYP
