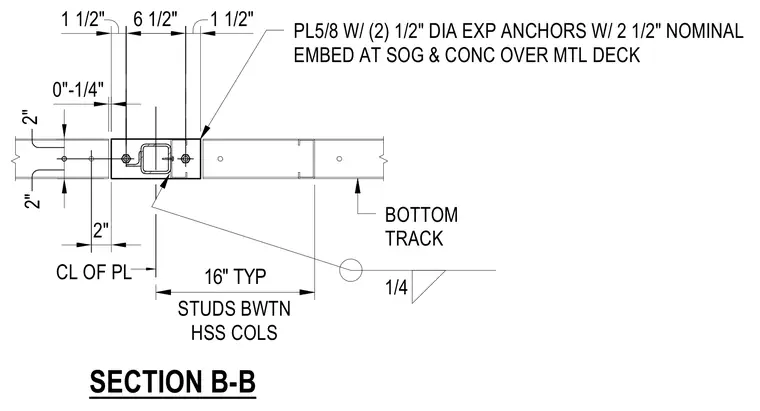

A five-eighths-inch steel plate is anchored with two half-inch diameter expansion anchors having two-and-a-half-inch nominal embedment at the slab on grade and concrete over metal deck. Metal studs are spaced at sixteen inches typical between hollow structural section columns with a bottom track welded using a quarter-inch fillet weld. The assembly features dimensional clearances ranging from zero to a quarter inch with plate centerlines positioned six and a half inches apart.
1 1/2" 6 1/2" 1 1/2" 2" 2" 2" 0"-1/4" PL5/8 W/ (2) 1/2" DIA EXP ANCHORS W/ 2 1/2" NOMINAL EMBED AT SOG & CONC OVER MTL DECK CL OF PL BOTTOM TRACK SECTION B-B 16" TYP 1/4 STUDS BWTN HSS COLS
