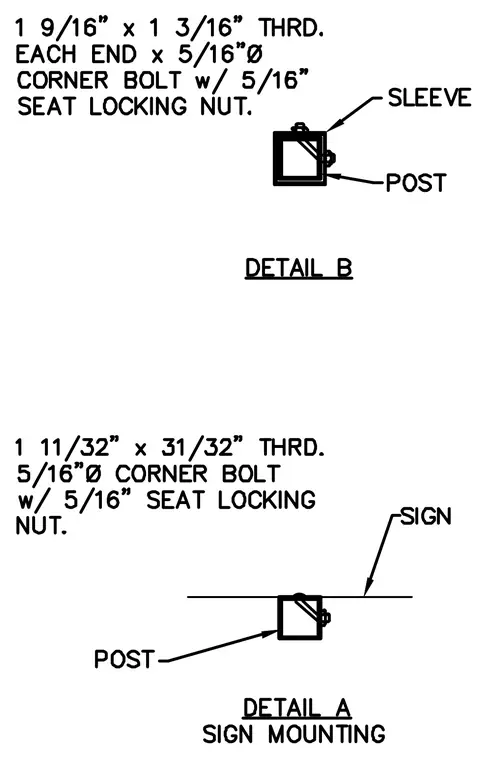

The assembly features a hollow structural section post secured with a sleeve and a five-sixteenths-inch diameter corner bolt equipped with a five-sixteenths-inch seat locking nut. The threaded connections measure one and nine-sixteenths inches by one and three-sixteenths inches threaded each end in Detail B, and one and eleven-thirty-seconds inches by thirty-one-thirty-seconds inches in Detail A. A sign plate connects directly to the post assembly.
